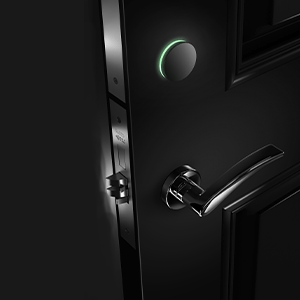

AElement Fusion HV38 Entrance

HV38

Contact Hager for Price

Specs

Applications

Where customizable designer handle sets are desired
Interior openings

Certifications

Declaration of Conformity CE
UL10C (45 minutes) Wood
UL10C (90 minutes) Metal

Mechanical

BHMA Certified ANSI A156.13, Series 1000, Grade 1, Operational and Security
UL 10C Positive Pressure Rated

Credential Technologies

Mifare (DESfire EV1, Plus, Classic - ISO/IEC14443) (standard)
HID iClass®
Bluetooth SMART (BLE)
Android (2.3.3 version minimum)
IOS
NFC

Door Thickness

From 1-3/8" - 1-3/4" up to 4-1/2" - 4-15/16"

Electromagnetic Compatibility

ETSI EN 301 489-1 (2011-09); ETSI EN 301 489-3 (2002-08)

Functions

Entrance

Lever Options

Archer, Joshua, Withnell, William, - see lever options under Related Files (additional styles offered)

Management Software

Salto ProAccess SPACE

Maximum Number of Doors Per System

65,000

Maximum Number of Users Per Door

4 Million

Notes

All AElement must be ordered handed

Operating Temperature

0º F to 140º F (not suitable for exterior openings)

Platform

SVN,
BLUEnet (including SVN+Flex)

Power Source/Connection

(3) alkaline AA 1.5V batteries up to 50,000 transactions

Product Name

HS4 AElement Fusion Mortise HV38

Programmable Lock Modes

Programs can be customized by user and by opening
Standard - locked at all times
Office Mode - free passage (can be set to revert to standard)
Timed Office - automatic locking at end time
Automatic Opening - 8 pairs of "hands-free" timed lock and unlocks per day with holidays
Toggle - present card to lock, present card to unlock
Timed Toggle - present card to lock, present card to unlock depending on schedule
Exit Leaves Open Mode - lock remains unlocked after the inside handle is used

Security Requirements

EN 60950-1 (2007)

Smartphone Capability

Android (2.3.3 version minimum), IOS

System Security

Secure Socket Layer (SSL),
AES 128 Bit encryption opening procedures

Use of Radio Frequency Spectrum

ETSI EN 328 V1.7.1 (2006-10); ETSI EN 300 330-1 V1.3.1 (2006-10); EST EN 300 330-1 V1.3.1 (2006-04)

Warranty

1 Year

Instructions

Name	Download	File type
HS4 AElement Lock Chassis Installation Guide ANSI - 221373-01.pdf	456 KB	.pdf
HS4 AElement Lever Installation ANSI - 4AN01300.pdf	177 KB	.pdf
AElement Fusion Installation Guide - 225415-01.pdf	834 KB	.pdf

Related Files

	Name	Download	File type
	HS4 Lever Options - HS4_Lvr_Opts_2019.pdf	475 KB	.pdf
	HS4 Lock Functions and Platform Descriptions - HS4_LS_Func_Plat_Desc.pdf	117 KB	.pdf
