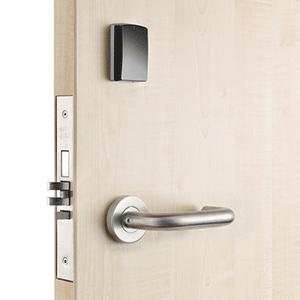

AElement HU38 Privacy Thumbturn

HU38

Contact Hager for Price

Specs

Applications

Where customizable designer handle sets are desired,
Interior applications,
Exterior applications (covered)

Certifications

Declaration of Conformity CE, UL10C (90 minutes) Wood and Metal

Credential Technologies

Mifare (DESfire EV1, Plus, Classic - ISO/IEC14443 (standard)
HID iClass®,
Bluetooth SMART (BLE),
Android (2.3.3 version minimum),
IOS
NFC

Door Thickness

From 1-3/8" - 1-3/4" up to 4-1/2" - 4-15/16"

Electromagnetic Compatibility

ETSI EN 301 489-1 (2011-09); ETSI EN 301 489-3 (2002-08)

Front Reader Height

2.6"

Front Reader Length

2.6" (H) x 1.8" (W) x 0.6" (D)

Functions

Privacy thumbturn

Lever Options

Archer, Joshua, Withnell, William (see lever options under Related Files), Additional styles offered

Lock Types

To be used only with Salto AElement mortise locks,
Without privacy, no deadbolt,
Privacy, deadbolt

Management Software

Salto ProAccess SPACE

Maximum Number of Doors Per System

65,000

Maximum Number of Users Per Door

4 Million

Mechanical

UL10C (90 minute),
BHMA Certified ANSI A156.13, Series 1000, Grade 1, Operational and Security,
UL/cUL Listed for all functions up to 3 hours for "A" label single doors,
UL 10C Positive Pressure Rated

Notes

All AElement must be ordered handed

Operating Temperature

32º F to 140º F

Platform

SVN,
Rfnet,
BLUEnet (including SVN+Flex)

Power Source/Connection

(3) alkaline AA 1.5V batteries up to 50,000 transactions

Product Name

HS4 AElement Mortise HU38

Programmable Lock Modes

Programs can be customized by user and by opening,
Standard - locked at all times,
Office Mode - free passage (can be set to revert to standard),
Timed Office - automatic locking at end time,
Automatic Opening - 8 pairs of "hands-free" timed

Security Requirements

EN 60950-1 (2007)

Smartphone Capability

Android (2.3.3 version minimum), IOS

System Security

Secure Socket Layer (SSL),
AES 128 Bit encryption opening procedures

Use of Radio Frequency Spectrum

ETSI EN 328 V1.7.1 (2006-10); ETSI EN 300 330-1 V1.3.1 (2006-10); EST EN 300 330-
1 V1.3.1 (2006-04)

Warranty

1 Year

Template Files

	Name	Download	File type
	HS4 AElement Lock Deadbolt Key Override (ANSI) 4ds01545-01.pdf	57 KB	.pdf
	HS4 AElement Lock-Deadbolt (ANSI) 4ds01544-01.pdf	54 KB	.pdf

Instructions

Name	Download	File type
HS4 AElement Lock Chassis Installation Guide ANSI - 221373-01.pdf	456 KB	.pdf
HS4 AElement Installation Guide - 220511-01.pdf	383 KB	.pdf
HS4 AElement Lever Installation ANSI - 4AN01300.pdf	177 KB	.pdf

Related Files

	Name	Download	File type
	HS4 Lever Options - HS4_Lvr_Opts_2019.pdf	475 KB	.pdf
	HS4 Lock Functions and Platform Descriptions - HS4_LS_Func_Plat_Desc.pdf	117 KB	.pdf
