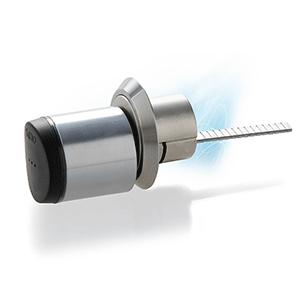

GEO HG01 Rim Cylinder

HG01

Contact Hager for Price

Specs

Additional Options

IP66 - dust and water resistant rating, recommended for outdoor use,
ADA Grips - black, blue, green, red, white, yellow,
Rigid Grips - black, green, red, white, yellow

Applications

Where fitting an escutcheon is not possible. Examples include: antique doors, post boxes, server racks, cabinets, padlocks, suitable for emergency exits.

Audio Feedback

Optional

Certifications

Declaration of Conformity CE
IP55 (IP66 optional)

Credential Technologies

Mifare (DESfire EV1, Plus, Classic - ISO/IEC14443)
HID iClass®
NFC

Depth

1.6" from mechanical cylinder face

Electromagnetic Compatibility

ETSI EN 301 489-1 (2011-09); ETSI EN 301 489-3 (2002-08)

Environment

IP55 (IP66 optional)

Finishes

US26D - Satin Chrome
US26 - Bright Chrome
US3 - Bright Brass
US4 - Satin Brass
BLK - Satin Chrome Black
BIO - Satin Chromium BioCote (antimicrobial)

Lock Types

Most surface mounted locks and exit devices

Management Software

Salto ProAccess SPACE

Maximum Number of Doors Per System

65,000

Maximum Number of Users Per Door

4 Million

Operating Temperature

-4º F to 140º F

Platform

SVN - standard
KS

Power Source/Connection

(1) lithium CR2 battery 40,000 - 60,000 transactions (batteries can be replaced without cylinder removal)

Product Name

HS4 GEO Rim HG01 Cylinder

Programmable Lock Modes

Programs can be customized by user and by opening
Standard - locked at all times
Automatic Opening - 8 pairs of "hands-free" timed lock and unlocks per day with holidays
Toggle - present card to lock, present card to unlock
Timed Toggle - present card to lock, present card to unlock depending on schedule

Security Requirements

EN 60950-1 (2007)

Use of Radio Frequency Spectrum

ETSI EN 302 291-1 V1.1.1 (2005-07); ETSI EN 302 291-2 V1.1.1 (2005-07)

Visual Feedback

Green light ring indicates granted access; red light ring indicates denied access

Warranty

1 Year

Width

1.5"

Instructions

	Name	Download	File type
	Geo Rim Cylinder Installation Instructions geo_rim_cylinder_installation-221366.pdf	264 KB	.pdf
	Geo Blocking Screw Installation - 221091.pdf	141 KB	.pdf

Related Files

	Name	Download	File type
	HS4 Lock Functions and Platform Descriptions - HS4_LS_Func_Plat_Desc.pdf	117 KB	.pdf
