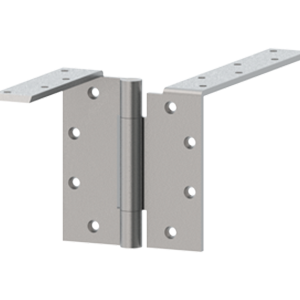

AB8506 3 Knuckle

AB8506

Contact Hager for Price

Specs

Applications

Box Quantity

Case Quantity

Certifications

ANSI A2511 (Brass), ANSI A5511 (Stainless Steel)

Fastener Size - Wood

1-1/4" x 12"

Fastener Size - Machine

1/2" x 12-24"

Features

Two anchor leaves. Non-removable pin standard with flush pin and plug.

Finishes

Gauge

See Sizing Chart Options

Height

See Sizing Chart Options

Knuckles

Material

Brass with Stainless Steel Pin, Stainless Steel with Stainless Steel Pin

Notes

Handed (specify when ordering).
Must be used with one pair of heavy weight full mortise hinges (AB750 or AB850 - sold separately).

Product Description

Full Mortise, 3-Knuckle, Anchor Hinge, Concealed Anti-Friction Bearing, Heavy Weight

Width

See Sizing Chart Options

	Name	Download	File type
	Full Mortise Anchor Hinge SQ Dr Edge - T-326.pdf	66 KB	.pdf
	Full Mortise Anchor Hinges - 127 mm x 114 mm - Template t326m.pdf	231 KB	.pdf

	Name	Download	File type
	Size Options - Hinge_Comm_Anchors_Size_Opt_2.pdf	114 KB	.pdf
