BB1196 5 Knuckle

BB1196

Contact Hager for Price

Specs

Applications

Box Quantity

Case Quantity

Certifications

ANSI A2511 (Brass), ANSI A5511 (Stainless Steel)

Fastener Size - Wood

1-1/4" x 12"

Fastener Size - Machine

1/2" x 12-24"

Features

Four ball bearings. Two anchor leaves. Non-removable pin standard with button tip and plug.

Finishes

Gauge

See Sizing Chart Options

Height

See Sizing Chart Options

Knuckles

Material

Brass with Stainless Steel Pin, Stainless Steel with Stainless Steel Pin

Notes

Must be used with one pair of heavy weight full mortise hinges (BB1168 or BB1199 - sold separately).
Handed (Specify when ordering).

Product Description

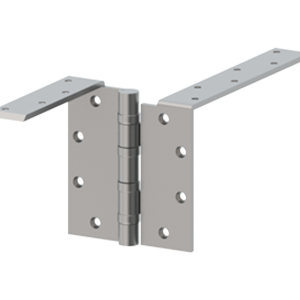

Full Mortise, 5-Knuckle, Ball Bearing, Anchor Hinge for Beveled Edge Doors, Heavy Weight

Width

See Sizing Chart Options

	Name	Download	File type
	Full Mortise Anchor Hinge Beveled Dr Edge - T-328.pdf	66 KB	.pdf
	Full Mortise Anchor Hinges - 127mm x 114mm Template - T328M.pdf	373 KB	.pdf

	Name	Download	File type
	Size Options - Hinge_Comm_Anchors_Size_Opt_2.pdf	114 KB	.pdf
