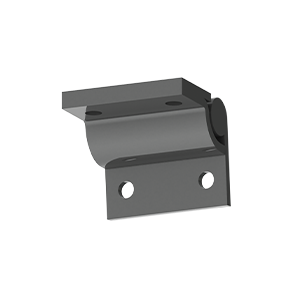

992 Full Surface HW Prison Pass Through Hinge with Stop

992

Contact Hager for Price

Specs

Applications: For use on small doors, access doors, and observation shutters.
Box Quantity: 1
Case Quantity: 12
Certifications: ANSI A8383
Fastener Size - Machine: 1" x 16-3/8" TORX
Features: Plain bearing. Welded pin. Torx button head bolt.
Finishes: USP
Gauge: See Sizing Chart Options
Height: See Sizing Chart Options
Knuckles: 3
Material: Steel with Steel Pin
Maximum Door Weight: 2 hinges will support 150 lbs.
Product Description: Full Surface Heavy Weight Prison Pass Through Hinge with Stop
Width: See Sizing Chart Options

	Name	Download	File type
	3" x 4" Prison Full Surface Food Pass Hinge t622.pdf	21 KB	.pdf

	Name	Download	File type
	Size Options - Hinge_Comm_Dtn_Size_Opt_3.pdf	115 KB	.pdf
