EC1105

Must be ordered in increments of three.

Contact Hager for Price

Specs

Applications

For use on 1-3/4" doors with a maximum weight of 180 lbs.

Box Quantity

Case Quantity

Certifications

ANSI K81071F

Fastener Size - Wood

1-1/4" x 12

Fasteners

All machine and all wood

Fastener Size - Machine

Finishes

USP, US3, US4, US10B, US15, US26, US26D (NOTE: the 4.5" x 4" size is only available in US26D)

Gauge

See Sizing Chart Options

Height

See Sizing Chart Options

Knuckles

Material

Steel ANSI K81071F

Maximum Door Weight

180 lbs

Notes

Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges.
Full spring tension may not be required on all hinges.
For maximum versatility use all spring hinges or a combination of spring hinges and ball bearing hinges. Do not use plain bearing hinges.
ECCO hinges are sold in box quantities only.

Options

Other ECCO hinges available in 316 Stainless Steel. Contact Hager Companies customer service for information.

Product Description

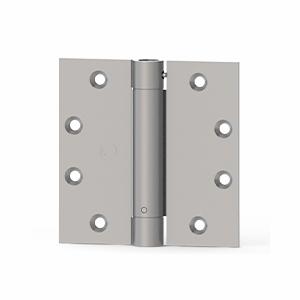

Full Mortise, Spring Hinge, Standard Weight, Square Corner

Width

See Sizing Chart Options

	Name	Download	File type
	4-1/2" t1105.pdf	92 KB	.pdf

	Name	Download	File type
	Installation Instructions for EC1105 Spring Hinge i-ec1105-installation.pdf	75 KB	.pdf

	Name	Download	File type
	Size Options Commercial Hinge_FullMortise_ECCO_SizeOptions 4.pdf	117 KB	.pdf
