ECBB1100

Must be ordered in increments of three.

Contact Hager for Price

Specs

Applications

For use on medium weight doors or doors requiring medium frequency service.

Box Quantity

Case Quantity

Certifications

ANSI A8112

Fastener Size - Wood

1-1/4" x 12"

Fasteners

All machine and all wood

Fastener Size - Machine

Features

Non-rising removable pin with button tip and plug.

Finishes

USP, US3, US4, US10B, US15, US26, US26D, L1

Fire Rating

Complies with NFPA80 requirements for use on fire rated door assemblies

Gauge

See Sizing Chart Options

Height

See Sizing Chart Options

Knuckles

Material

Steel with Steel Pin

Notes

Options

Some ECCO hinges available in 316 Stainless Steel. Contact Hager Companies customer service for information.
Non-removable pins (NRP) available. Choose NRP option if ordering online or ECBB1100NRP from the price book.

Product Description

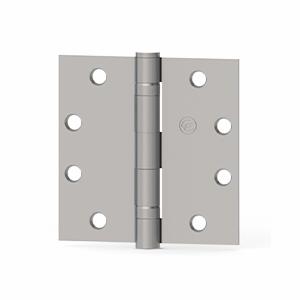

Full Mortise, 5-Knuckle, Ball Bearing, Standard Weight

Width

See Sizing Chart Options

	Name	Download	File type
	Full Mortise Template - T1101-Rev02.pdf	42 KB	.pdf
	Full Mortise 4-??" x 4" Template t1100c.pdf	72 KB	.pdf

	Name	Download	File type
	Size Options - Hinge_Comm_EC_Size_Opt_2.pdf	114 KB	.pdf
