ECBB1102

Contact Hager for Price

Specs

Applications

For use on heavy weight doors or doors requiring high frequency service.

Box Quantity

Case Quantity

Certifications

ANSI 8111

Fastener Size - Wood

1-1/4" x 12"

Fastener Size - Machine

Features

Four ball bearings. Non-rising removable pin with tip and plug.

Finishes

USP (4.5" x 4.5" only), US15, US26, US26D

Fire Rating

Complies with NFPA80 requirements on fire rated assemblies.

Gauge

See Sizing Chart Options

Height

See Sizing Chart Options

Knuckles

Material

Steel with Steel pin

Notes

ECCO hinges are sold in box quantities only.

Options

Other ECCO hinges available in 316 Stainless Steel. Contact Hager Companies customer service for information.
Non-removable pins (NRP) available. Choose NRP option if ordering online or ECBB1100NRP from the price book.

Product Description

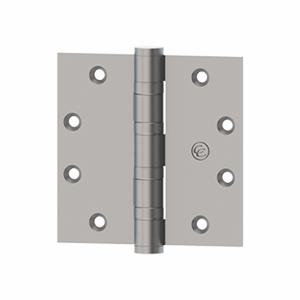

Full Mortise, 5-Knuckle, Ball Bearing, Heavy Weight

Width

See Sizing Chart Options

	Name	Download	File type
	Full Mortise Template - T1103H-Rev01.pdf	40 KB	.pdf
	Full Mortise Template - T1102H-Rev01.pdf	40 KB	.pdf

	Name	Download	File type
	Size Options - Hinge_Comm_EC_Size_Opt_3.pdf	116 KB	.pdf
