1252

Contact Hager for Price

Specs

Box Quantity

3-1/2" x 3-1/2"- two per box, all other sizes - 3 per box

Case Quantity

3-1/2" x 3-1/2" (80), all others (90)

Certifications

ANSI K81071F

Fastener Size - Wood

#12 x 1-1/4"

Fastener Size - Machine

Finishes

USP, US3, US4, US10, US10A, US10B, US26D

Gauge

See Sizing Chart Options

Height

See Sizing Chart Options

Knuckles

Material

Steel with Steel Components

Notes

For maximum versatility use all spring hinges or a combination of spring hinges and ball bearing hinges. Full spring tension may not be required on all hinges. Do not use plain bearing hinges.
Hager does not recommend using spring hinges on doors over 7'0".
Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges.

Options

Product Description

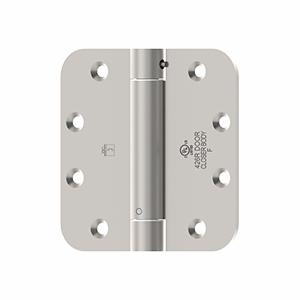

Full Mortise, Spring Hinge, 5/8" Round Corner Radius, Standard Weight

Width

See Sizing Chart Options

Name	Download	File type
Full Mortise Single Acting Spring Template - T402.pdf	249 KB	.pdf
Full Mortise SGL Acting Spring Hinge Template - 3.5in x 3.5in - T400.pdf	245 KB	.pdf
Full Mortise SGL Acting Spring Hinge Template - 4in x 4in - T401.pdf	235 KB	.pdf

	Name	Download	File type
	Spring Hinge Installation Instructions 1150_1250_1750 - Rev06-28-06B.pdf	82 KB	.pdf

	Name	Download	File type
	Size Options - Hinge_Comm_FM_Size_Opt_3.pdf	115 KB	.pdf
