1255

Contact Hager for Price

Specs

Box Quantity

Case Quantity

Certifications

ANSI K81071F

Fastener Size - Wood

12 x 1-1/4"

Fastener Size - Machine

12-24 x 1/2"

Features

Package includes two each 1250 spring hinge and one each AB700 ball bearing hinge.

Finishes

USP, US3, US4, US10B, US26D

Gauge

See Sizing Chart Options

Height

See Sizing Chart Options

Knuckles

Material

Steel with Steel Components

Notes

For use on 1-3/4" (45 mm) thick doors
Hager does not recommend using spring hinges on doors over 7'0"
For maximum versatility use all spring hinges or a combination of spring hinges and ball bearing hinges. Do not use plain bearing hinges
Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges. Full spring tension may not be required on all hinges

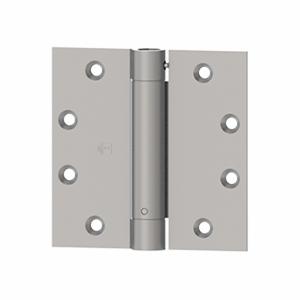

Product Description

Full Mortise, Spring Hinge, Standard Weight

Width

See Sizing Chart Options

	Name	Download	File type
	Spring Hinge Installation Instructions 1150_1250_1750 - Rev06-28-06B.pdf	82 KB	.pdf

	Name	Download	File type
	Size Options - Hinge_Comm_FM_Size_Opt_1.pdf	126 KB	.pdf
