1257

Contact Hager for Price

Specs

Box Quantity

4-1/2" x 4-1/2", 3 per box.

Case Quantity

Certifications

ANSI K81071

Fastener Size - Wood

1-1/4" x 12"

Fastener Size - Machine

Finishes

USP, US3, US4, US10, US10A, US10B, US26D

Gauge

See Sizing Chart Options

Height

See Sizing Chart Options

Knuckles

Material

Steel with Steel Components

Notes

Reverse action, single acting spring hinges are for automatic opening of door.
For maximum versatility use all spring hinges or a combination of spring hinges and ball bearing hinges. Do not use plain bearing hinges. Hager does not recommend using spring hinges on doors over 7'0".
Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges. Full spring tension may not be required on all hinges.

Product Description

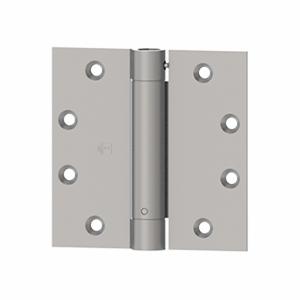

Full Mortise, Spring Hinge, Reverse Action, Square Corner, Standard Weight

Width

See Sizing Chart Options

	Name	Download	File type
	1257, 1258, 1259 Installation Instructions t407_template.pdf	246 KB	.pdf

	Name	Download	File type
	Hinge_Comm_FullMortise_SizeOption_4.5x4.5.pdf	116 KB	.pdf
