ANSI K81071F

1-1/4" x 12"

USP, US3, US10, US10A, US10B, US26, US26D

3

Steel with Steel Components

• Swing clear spring hinge for automatic closing of door. It provides the features of both a swing clear hinge and a spring hinge. It meets codes for hotels, motels, institutions, and commercial buildings.
• Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges. Full spring tension may not be required on all hinges.
• Single acting, square corner.
• For maximum versatility, use all spring hinges or a combination of spring and ball bearing hinges. Do not use plain bearing hinges.
• Hager does not recommend using spring hinges on doors over 7'0"

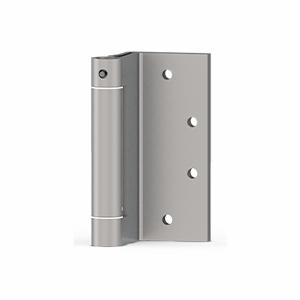

Full Mortise, Swing Clear Spring Hinge, Square Edge Doors, Standard Weight
