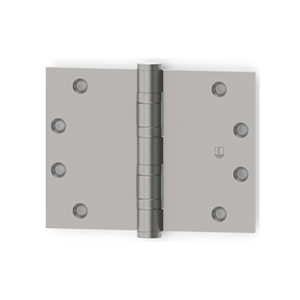

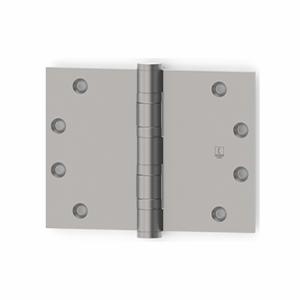

WTBB1168

To order please click here to be redirected to the BB1168 product. Choose the Wide Throw option from the menu.

Contact Hager for Price

Specs

Applications: For use on heavy weight doors or doors requiring high frequency service.
Box Quantity: 3
Case Quantity: 24
Certifications: ANSI A8111
Electric Modifications: EMN (Electric Monitor Only), ETW (Electric Through-Wire Only), ETM (Electric Through-Wire with Monitoring), Quick Connect
Features: Non-rising removable pin with button tip and plug. Four ball bearings.
Finishes: LS, USP, US3, US10, US10A, US10B, US26, US26D
Gauge: See Sizing Chart Options
Height: See Sizing Chart Options
Knuckles: 5
Material: Steel with Steel Pin
Product Description: Full Mortise, Wide Throw, Ball Bearing, Heavy Weight
Width: See Sizing Chart Options

Name	Download	File type
Full Mortise Template - T311.pdf	416 KB	.pdf
Full Mortise Template - T317.pdf	105 KB	.pdf
Full Mortise Rounded Corners Template - T311RC.pdf	67 KB	.pdf
Full Mortise Template - T318.pdf	98 KB	.pdf
Full Mortise Template - T319.pdf	96 KB	.pdf
Full Mortise Emplate Air Transfer Template - T-630.pdf	274 KB	.pdf
Full Mortise Template Unequal - T-Unequal.pdf	78 KB	.pdf
Full Mortise Template - T315M.pdf	365 KB	.pdf
Full Mortise Reverse Safety Stud Template - T316M-Rev02.pdf	74 KB	.pdf
Full Mortise Reverse Safety Stud Template - T316-Rev02.pdf	67 KB	.pdf
Full Mortise Template - T315.pdf	363 KB	.pdf
Full Mortise Template - T311M.pdf	367 KB	.pdf
Full Mortise Reverse Safety Stud Template - T312M-Rev02.pdf	73 KB	.pdf
Full Mortise Reverse Safety Stud Template - T312-Rev02.pdf	68 KB	.pdf

	Name	Download	File type
	Size Options - Hinge_Comm_FM_Size_Opt_6.pdf	122 KB	.pdf
