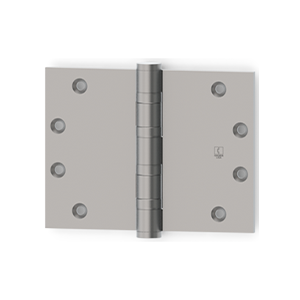

WTBB1191

To order please click here to be redirected to the BB1191 product. Choose the Wide Throw option from the menu.

Contact Hager for Price

Specs

Applications: For use on medium weight doors or doors requiring medium frequency service.
Box Quantity: 3
Case Quantity: 24
Certifications: ANSI A2112 (Brass), ANSI A5112 (Stainless Steel)
Features: Non-rising removable pin with button tip and plug. Two ball bearings.
Finishes: US3, US4, US10, US10B, US26, US26D, US32, US32D
Gauge: See Sizing Chart Options
Height: See Sizing Chart Options
How To Order: To order please click here to be redirected to the BB1191 product. Choose the Wide Throw option from the drop down menu.
Knuckles: 5
Material: Brass or stainless steel with stainless steel pin
Product Description: Full Mortise, Wide Throw, Standard Weight
Width: See Sizing Chart Options

Name	Download	File type
Full Mortise Template - T308M.pdf	358 KB	.pdf
Full Mortise Template - T311.pdf	416 KB	.pdf
Full Mortise Template - T317.pdf	105 KB	.pdf
Full Mortise Non-Template - T305.pdf	89 KB	.pdf
Full Mortise Rounded Corners Template - T311RC.pdf	67 KB	.pdf
Full Mortise Template - T308.pdf	79 KB	.pdf
Full Mortise Template - T304.pdf	110 KB	.pdf
Full Mortise Template - T315M.pdf	365 KB	.pdf
Full Mortise Reverse Safety Stud Template - T316M-Rev02.pdf	74 KB	.pdf
Full Mortise Reverse Safety Stud Template - T316-Rev02.pdf	67 KB	.pdf
Full Mortise Template - T315.pdf	363 KB	.pdf
Full Mortise Template - T311M.pdf	367 KB	.pdf
Full Mortise Reverse Safety Stud Template - T312M-Rev02.pdf	73 KB	.pdf
Full Mortise Reverse Safety Stud Template - T312-Rev02.pdf	68 KB	.pdf

	Name	Download	File type
	Size Options - Hinge_Comm_FM_Size_Opt_3.pdf	126 KB	.pdf
