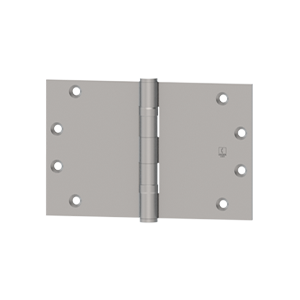

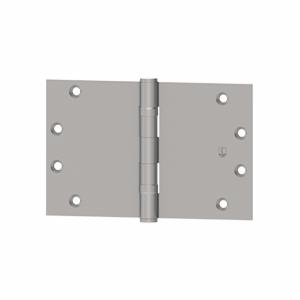

WTBB1279

To order please click here to be redirected to the BB1279 product. Choose the Wide Throw option from the menu.

Contact Hager for Price

Specs

Applications

For use on medium weight doors or doors requiring medium frequency service.

Box Quantity

Case Quantity

Certifications

ANSI A8112.
Hinge testing conforms to ANSI 156.1.
Furnished with fastener hole locations that conform to standards approved by ANSI A156.7 .

Electric Modifications

EMN (Electric Monitor Only), ETW (Electric Through-Wire Only), ETM (Electric Through-Wire with Monitoring), Quick Connect

Features

Two ball bearings. Non-rising removable pin with button tip and plug.

Finishes

LS, USP, US3, US10, US10A, US10B, US26, US26D

Gauge

See Sizing Chart Options

Height

See Sizing Chart Options

Knuckles

Material

Steel with Steel Pin

Product Description

Full Mortise, Ball Bearing, Wide Throw, Standard Weight

Width

See Sizing Chart Options

Name	Download	File type
Full Mortise Template - T308M.pdf	358 KB	.pdf
Full Mortise Template - T311.pdf	416 KB	.pdf
Full Mortise Template - T317.pdf	105 KB	.pdf
Full Mortise Non-Template - T305.pdf	89 KB	.pdf
Full Mortise Rounded Corners Template - T311RC.pdf	67 KB	.pdf
Full Mortise Template - T308.pdf	79 KB	.pdf
Full Mortise Emplate Air Transfer Template - T-630.pdf	274 KB	.pdf
Full Mortise Template Unequal - T-Unequal.pdf	78 KB	.pdf
Full Mortise Template - T304.pdf	110 KB	.pdf
Full Mortise Template - T315M.pdf	365 KB	.pdf
Full Mortise Reverse Safety Stud Template - T316M-Rev02.pdf	74 KB	.pdf
Full Mortise Reverse Safety Stud Template - T316-Rev02.pdf	67 KB	.pdf
Full Mortise Template - T315.pdf	363 KB	.pdf
Full Mortise Template - T311M.pdf	367 KB	.pdf
Full Mortise Reverse Safety Stud Template - T312M-Rev02.pdf	73 KB	.pdf
Full Mortise Reverse Safety Stud Template - T312-Rev02.pdf	68 KB	.pdf

	Name	Download	File type
	Size Options - Hinge_Comm_FM_Size_Opt_3.pdf	126 KB	.pdf
