BB1173

Contact Hager for Price

Specs

Applications

For use on regular weight hollow metal or wood composite doors with hollow metal frames requiring medium frequency service.

Box Quantity

Certifications

ANSI A8412

Fastener Size

Machine Screw - Door Leaf: #12-20 x 1/2" FH

Features

Two ball bearings. Non-rising removable pin with button tip and plug.

Finishes

USP, US10, US10A, US10B, US26D

Gauge

See Sizing Chart Options

Height

See Sizing Chart Options

Knuckles

Material

Steel with Steel Pin

Notes

Beveled surface leaf
Reversible
Thru-bolts and grommets for wood door applications
4" is for 1-3/8" door. 4" for 1-3/4" door is available by consulting the Hager Tech Department

Options

Hospital tip

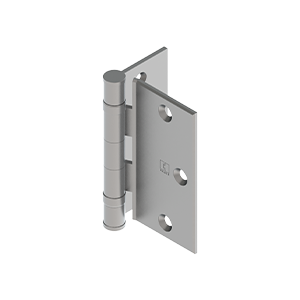

Product Description

Half Surface, 5-Knuckle, Ball Bearing, Standard Weight

Width

See Sizing Chart Options

Name	Download	File type
Half Surface Template 3.5in - T331.pdf	301 KB	.pdf
Half Surface Template 4.5in - T333.pdf	306 KB	.pdf
Half Surface Template 4in - T332.pdf	296 KB	.pdf

	Name	Download	File type
	Size Option Commercial Hinge_HalfSurface_SizeOptions 2.pdf	126 KB	.pdf
