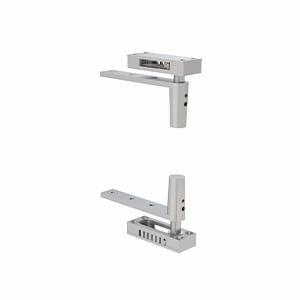

    500 SINGLE ACTING

    500
    Contact Hager for Price

    Specs

    Box Quantity
    1
    Case Quantity
    16
    Certifications

    ANSI A2792

    Door Thickness

    1-3/8" (35 mm) thru 1-3/4" (44 mm)

    Fastener Size - Wood

    1-1/4" x 12 F.H.

    Fastener Size - Machine
    upon request
    Features

    Non-handed - Concealed - Adjustable alignment

    Finishes

    US26D

    Gauge
    See Sizing Chart Options
    Maximum Door Height

    7' (2134 mm)

    Maximum Door Length
    3' (914 mm)
    Maximum Door Weight

    80 lbs.

    Notes
    • 1-3/8" (35 mm) thru 1-3/4" (44 mm) thick doors.
    • Maximum weight not over 80 pounds.
    • Not to exceed 3' (914 mm) wide and 7' (2134 mm) high.
    • Frame not to have door stop at head and pivot jamb.
    • Consult Hager Tech Support for doors thicker than 1-3/4" (44 mm).
    • Pivot opens door to 105 degree maximum
    Product Description

    Single Acting Standard Weight Rack and Pinion

    Product Name

    Single Acting Standard Weight Rack and Pinion

    Width
    See Sizing Chart Options

    Template Files

      Name Download File type
    		500 Pivot Template Metric T358M.pdf 67 KB
    		.pdf
    		500 Pivot Template T356.pdf 66 KB
    		.pdf

    Instructions

      Name Download File type
    		500 Installation Instructions (Metric) I-500M_Pivot.pdf 107 KB
    		.pdf

    Size Details

      Name Download File type
    		Size Options - Hinge_Comm_Piv_Size_Opt_5.pdf 111 KB
    		.pdf
