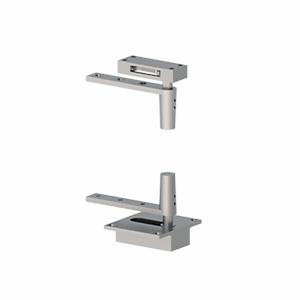

    550 SINGLE ACTING HW RACK AND PINION

    550
    Contact Hager for Price

    Specs

    Box Quantity
    1
    Case Quantity
    10
    Certifications

    ANSI A2792

    Door Thickness

    1-3/4" (44 mm)

    Fastener Size - Wood

    1-1/4" x 12 F.H.

    Fastener Size - Machine
    upon request
    Finishes

    US26D

    Gauge
    See Sizing Chart Options
    Maximum Door Height

    7' (2134 mm)

    Maximum Door Length
    3' (914 mm)
    Maximum Door Weight

    150 lbs.

    Notes
    • Not to exceed 3' x 7' (914mm x 2134mm)
    • Frame not to have door stop at head and pivot jamb.
    • Consult Hager Tech Department for doors other than 1-3/4" (44 mm).
    • Plastic cinch anchors.
    Product Description

    Single Acting Heavy Weight Rack and Pinion

    Product Name

    Single Acting - Heavy Weight Rack and Pinion

    Width
    See Sizing Chart Options

    Template Files

      Name Download File type
    		550 Pivot Template T357-Rev02.pdf 65 KB
    		.pdf
    		550 Pivot Template Metric T357M-Rev02.pdf 63 KB
    		.pdf

    Instructions

      Name Download File type
    		550 Installation Instructions I550-Rev02.pdf 110 KB
    		.pdf
    		550 Installation Instructions (Metric) I550M-Rev02.pdf 113 KB
    		.pdf

    Size Details

      Name Download File type
    		Size Options - Hinge_Comm_Piv_Size_Opt_5.pdf 111 KB
    		.pdf
