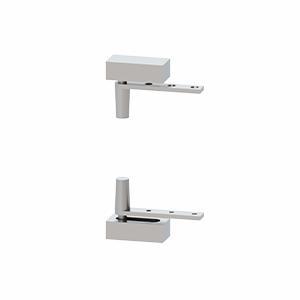

    551 Single Acting HW Rack and Pinion

    551
    Contact Hager for Price

    Specs

    Box Quantity
    1
    Case Quantity
    10
    Certifications

    ANSI A2792

    Door Thickness

    1-3/4" (44 mm)

    Fastener Size - Wood

    1-1/4" x 12 F.H. (plastic cinch anchors)

    Fastener Size - Machine
    upon request
    Finishes

    US26D

    Gauge
    See Sizing Chart Options
    Maximum Door Height

    8' (2438 mm)

    Maximum Door Length
    4' (1219 mm)
    Maximum Door Weight

    180 lbs.

    Notes
    • Frame not to have door stop at head and pivot jamb.
    • Not to exceed 4' x 8' (1219mm x 2438mm)
    • Consult Hager Tech Department for doors other than 1-3/4" (44 mm).
    • Plastic cinch anchors
    Product Description

    Single Acting - Extra Heavy Weight Rack and Pinion

    Product Name

    Single Acting - Extra Heavy Weight Rack and Pinion

    Width
    See Sizing Chart Options

    Template Files

      Name Download File type
    		551 Template T0551-Rev02.pdf 38 KB
    		.pdf

    Instructions

      Name Download File type
    		551 Installation Instructions I0551-Rev02.pdf 60 KB
    		.pdf

    Size Details

      Name Download File type
    		Size Options Commercial Hinge_Pivots_SizeOptions 8.pdf 116 KB
    		.pdf
