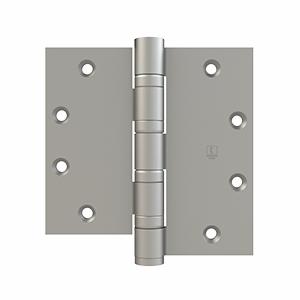

BB1199 Unequal Leaf Bottom

Contact Hager for Price

Specs

Applications

For use on heavy weight doors or doors requiring high frequency service and when door and frame have 4.5" and 5" cut-outs

Fastener Size - Wood

#12 x 1/2"

Fastener Size - Machine

Features

Finishes

US32D
Additional finishes available upon request. Contact Hager Customer Service for more information

Fire Rating

Complies with NFPA80 requirements for use on fire-rated door assemblies.

Gauge

See Sizing Chart Options

Height

See Sizing Chart Options

How To Order

To order please click here to be redirected to the BB1199 product. Choose the Unequal Leaf Bottom option from the drop down menu.

Knuckles

Material

Stainless Steel with Stainless Steel Pin

Notes

Handing is required.
Handing is based on the door being the 4.5". If door is 5", handing is opposite.

Options

Additional sizes and hinges available. (Contact Hager Customer Service for information).

Product Description

Full Mortise, Ball Bearing, NRP Standard, Heavy Weight

Width

See Sizing Chart Options

	Name	Download	File type
	Unequal Leaf Bottom 5.0 x 4.5 x 5.0 Template - T-CT00181-Rev04.pdf	240 KB	.pdf

	Name	Download	File type
	Unequal Leaf Guide - G-ALL-EN-000.029.pdf	280 KB	.pdf

	Name	Download	File type
	Size Options - Hinge_Comm_Spec_Size_Opt_1.pdf	144 KB	.pdf
