• For residential and commercial use.
• For square edge doors.

ANSI A8123

Non-rising removable pin with button tip and plug.

USP, US3, US4, US10, US10A, US10B, US26, US26D

5

Steel with Steel Pin

• When opened 90°, door projects 9/64" (4 mm) past stop of jamb for 3 1/2" hinge.
• When opened 90°, door projects 3/16" (5 mm) past stop of jamb for 4" hinge.
• Reversible (specify handing). Assembled RH - reversible to LH.

Hospital tip

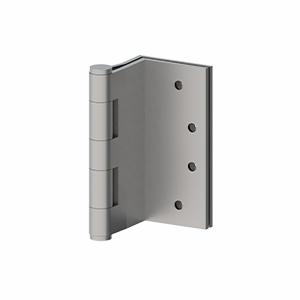

Full Mortise, 5-Knuckle, Swing Clear, Plain Bearing, Standard Weight
