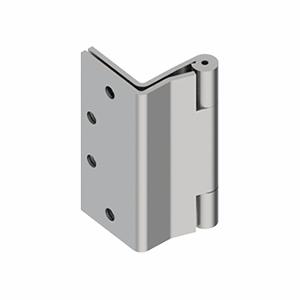

AB7002 3 Knuckle

AB7002

Contact Hager for Price

Specs

Applications

For beveled edge doors, and for use in hospitals or other institutional type buildings.

Box Quantity

Case Quantity

Certifications

ANSI A8122

Fastener Size - Wood

1-1/4" x 12"

Fastener Size - Machine

1/2"x #12-24"

Features

Non-rising removable pin with flush pin and plug.

Finishes

LS, USP, US3, US10, US10A, US10B, US26, US26D

Gauge

See Sizing Chart Options

Height

See Sizing Chart Options

Knuckles

Material

Steel

Notes

Options

Hospital tip

Product Description

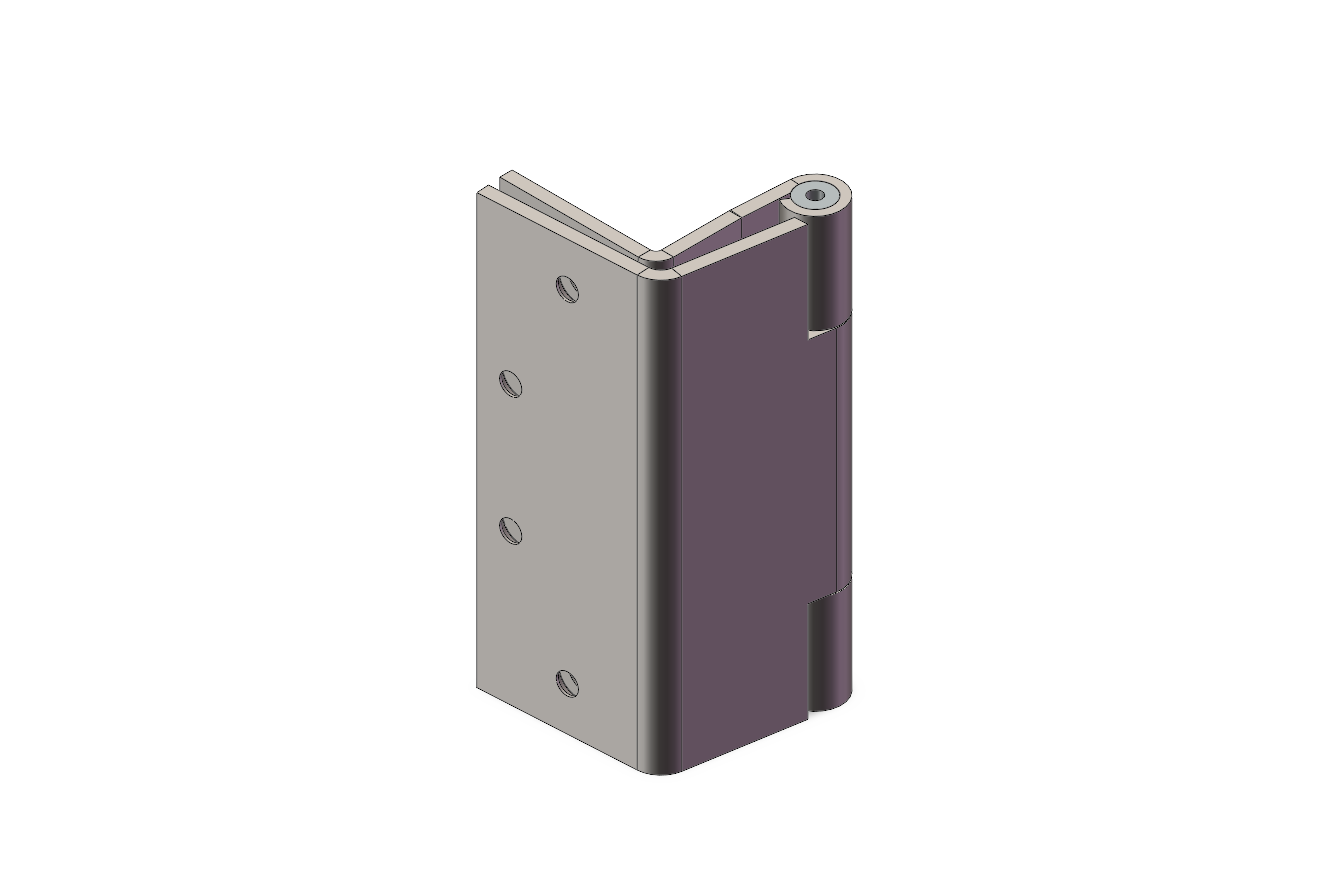

Full Mortise, 3-Knuckle, Swing Clear, Concealed Anti-Friction Bearing, Standard Weight

Width

See Sizing Chart Options

	Name	Download	File type
	Full Mortise 5in Swing Clear Template Beveled Edge Dr - T373-Rev02.pdf	89 KB	.pdf
	Full Mortise 4.5in Swing Clear Template Beveled Edge Dr - T372.pdf	380 KB	.pdf

	Name	Download	File type
	Electric Hinge Installation - 17370050.pdf	399 KB	.pdf

	Name	Download	File type
	Sizing Options and Specifications Swing Clear - M-CT00183	176 KB	.pdf
