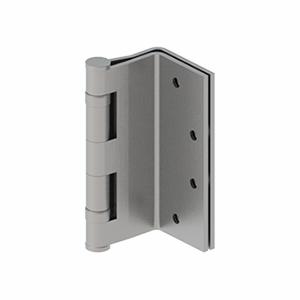

    BB1361

    BB1361
    ADA Compliant: True
    Contact Hager for Price

    Specs

    Applications
    • For use in hospitals or other institutional type buildings.
    • For beveled edge doors.
    Box Quantity
    3
    Case Quantity
    36
    Certifications

    ANSI A5122

    Fastener Size - Wood

    1 1/4" x 12" FH

    Fastener Size - Machine
    1/2" x #12-24" FH
    Features

    Two ball bearings. Non-rising removable pin with button tip and plug.

    Finishes

    US32D

    Gauge
    See Sizing Chart Options
    Height
    See Sizing Chart Options
    Knuckles

    5

    Material

    Stainless Steel with Stainless Steel Pin

    Notes
    • When opened 90°, door projects 3/32" (2 mm) past stop of jamb.
    • Reversible.
    • Assembled RH - reversible to LH.
    Options

    Hospital tip

    Product Description

    Full Mortise, 5-Knuckle, Ball Bearing, Swing Clear, Standard Weight

    Width
    See Sizing Chart Options

    Template Files

      Name Download File type
    		Full Mortise 5in Swing Clear Template Beveled Edge Dr - T373-Rev02.pdf 89 KB
    		.pdf
    		Full Mortise 4.5in Swing Clear Template Beveled Edge Dr - T372.pdf 380 KB
    		.pdf

    Size Details

      Name Download File type
    		Sizing Options and Specifications Swing Clear - M-CT00195 176 KB
    		.pdf
