• Grade 1 Heavy Duty Surface Door Closer adjustable sizes 1-6
• Ideal for schools, hospitals, and other high-use environments

• BHMA Certified ANSI A156.4, adjustable sizes 1-6
• ADA compliant ANSI A117.1 Accessibility Code
• UL/cUL Listed for up to 3 hours
• UL10C Positive Pressure Rated
• UL10B Neutral Pressure Rated
• 5100 Door Closer EPD

• Full plastic cover - standard
• Plated metal cover - optional

• 1-3/4" (44 mm) - standard
• 1-3/8" - 2-1/4" (36 mm - 57 mm) thick door - optional

• Self-reaming, self-tapping wood and machine screws (standard)
• Sex nuts and bolts

ALM

Track- extruded aluminum, Arm- steel

330 lbs.

• To maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball bearing hinges with our door closer products.
• The recommended temperatures for prolonged closer use is between -40° F (-42° C) and 150° F (66° C)
• Any certified BHMA/ANSI A156.4 door closer, regardless of manufacturer, that is installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door
• If arms are ordered separately, there will be a significant difference in price than if purchased with a closer as a complete assembly. See adders for more information (add the list price of the option to the list price of the closer and take standard discounts).
• Accessories may not be available in all finishes. Please contact Hager for availability and lead time.

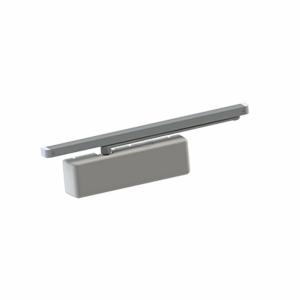

5100 Closer x Hold Open Stop Track Arm (HOTA)

Adjustable size 1 to 6

• One piece seamless steel spring tube
• Double heat-treated, steel-tempered springs
• Precision-machined, heat-treated steel piston

• Adjustable backcheck, sweep, and latching valves- standard
• Delayed action valve - optional
• All valves are staked

Lifetime warranty
