Ideal for light duty commercial applications

• BHMA Certified ANSI A156.4, sizes 2-5 adjustable
• UL/cUL Listed for up to 3 hours
• UL10C Positive Pressure Rated
• UL10B Neutral Pressure Rated
• Five-year warranty
• EPD

Plastic cover optional

• 1-3/4" (44 mm) - standard
• 1-3/8" - 2-1/4" (36 mm - 57 mm) - optional

• Self-reaming self-tapping wood and machine screws
• Sex nuts and bolts

• ALM and DBZ are standard.
• BRZ, BLK, and GOL are available at extended lead times with minimum order quantities.

Aluminum alloy

200 lbs

• To maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball bearing hinges with our door closer products
• Standard package contains standard screw pack, 5900 parallel arm bracket, and 5902 SNB screw pack for 1-3/4" (44 mm) door
• Precision machined, heat treated steel piston
• Triple heat treated steel spindle
• The recommended temperatures for prolonged closer use is between -40° F (-42° C) and 150° F (66° C)

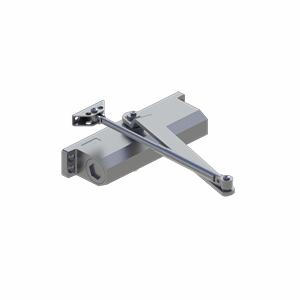

Grade 2 Standard Duty Surface Door Closer - Adjustable Sizes 2-5

Double heat-treated, steel-tempered springs

• Sweep and latching valves- standard
• Backcheck valve- optional
• All valves are staked

Five year
