• 6015C- Concealed friction
• 6016C- Concealed stop only
• 6017C- Concealed hold open

• BHMA & ANSI 156.8 Compliant
• UL/cUL Listed for up to 3 hours (stop only)
• UL10C Positive Pressure Rated (stop only)
• UL10B Neutral Pressure Rated (stop only)

• 1-3/4" (44 mm) thick door - standard
• 1-3/8" - 2-1/4" (36 mm - 57 mm) thick door - optional

Standard screw packet included for wood or metal door and frame applications

• US10B, US32D (for stainless steel), ALM

Steel, stainless steel

Concealed

• Adjustable arms provide easy installation
• Slide track design
• Adjustable in the field
• Heavy shock absorber spring provides 5° to 7° compression before dead stop
• Special templating upon request
• Single and double acting doors
• Degree of opening is fully adjustable and can be adapted to changing needs between 85° to 110°

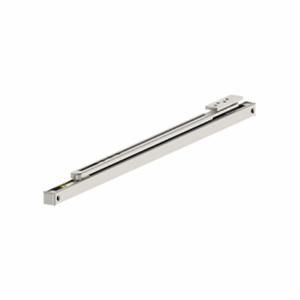

Grade 2 Medium Duty Overhead Door Holder and Stop

• Size 1 (SZ1) = 18"-33" door
• Size 2 (SZ2) = 33"-51" door

Five years
