• 2-679-0905 – Standard Arm Extension ALM
• 2-679-0906 – Standard Arm Extension BLK
• 2-679-0907 – KP EVO Programming Device (Required for advanced programming features.)

• For use on fire-rated and non-fire-rated openings
• Exterior Doors: Yes (Interior side only)
• Works on both outswing or inswing doors
• Adjustable Opening Angle: Max Degree of Swing Powered -180 degrees (push), 140 (pull)
• Opening Force: <15 lbs. - Exceeds all ADA requirements
• Closing Force: >8 lbs.

• ANSI Meets A156.19
• Complies with all U.S. and Canada ADA requirements for low energy operators
• UL/cUL (Fire rating) Listed for up to 3 hours
• UL10C Positive Pressure Rated
• UL325 Listed

• Power Requirements: 115 VAC 60 HZ
• Current Draw: 0.4 A to 1.2 A (Max)
• Fused Protection: 3.15A fuse
• Onboard Power Supply: 24 VDC 1 A
• Electric Lock Relay: 5.0A @ 28 VDC Form "C" SPDT

• Non-handed
• Operates as a manual closer with or without power
• Onboard power supply for accessories i.e. electric and magnetic locks, sensors, etc.
• Built-in adjustable door stop for protection against wind or abusive environments
• Blow open function for for smoke ventilation (alarm contacts)
• Equipped with cycle count
• Factory setting for ANSI 156.19 speed requirements AND hold time delay
• Night mode allows the exterior actuator to be deactivated by a rocker switch on the side of the operator
• On/Off/Hold Open Switch: Standard
• Fire Alarm input shunts swing activations until FACP is manually reset
• Memory is flash upgradeable

ALM, BLK (priced same as DBZ), DBZ (ships with black arm)

How to order form located in related files

Appropriate door signage included with each operator

Single person installation using pre-drilled mounting holes

36”, 42”, 44”, 48” (Non-Standard Sizes Available)

350 lbs.

5'

• For stocking distributors, operators and arms can be ordered separately allowing for reduced inventory and greater flexibility. See the price book for additional information.
• Order form required for all Hager low energy operators. Order form can be found under Related Files. Please complete and submit with purchase order.

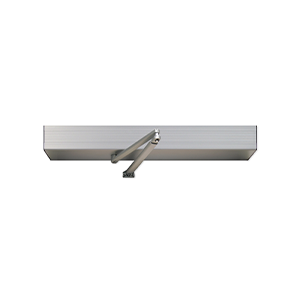

Low Energy Auto Operator for Single Door Openings

Single Operator

• Boost on close - selectable power assist and additional force for the last 10 degrees of closing
• Adjustable Opening Force Limitation
• Adjustable Opening and Closing Speeds
• Adjustable Hold Open Time for Door Activators

• Push Arm: 9-3/4" (Reveals between 9-3/4" and 19", arm extension must be ordered separately)
• Pull Arm: 0"

5" H x 4-1/2" D x Length equals opening width plus 3"

2 Year
