For perimeter and interior door security and access control

ANSI/BHMA A156.23 Grade 1 Compliant

• 250mA @ 12/24VDC - Power Input (Auto Sensing)
• SPDT, dry 250mA @ 30VDC - Anti-Tamper Switch (Optional)
• SPDT, dry 250mA @ 30VDC - Door Position Sensor (Optional)
• SPDT, dry 250mA @ 30VDC - Magnetic Bond Sensor (Optional)

• Can be ordered with optional features factory-installed or added as modular upgrade kits
• Field upgradeable without removal
• Quick mount assembly
• Compatible with any access control system
• Secure wiring and mounting screws with interlocking mounting plate

ALM, DBZ

• Anti-Tamper Switch (ATS)
• Door Position Sensor (DPS)
• Magnetic Bond Sensor (MBS)
• ATS-DPS-MBS
• DPS-MBS
• DPS-MBS-Timer

• 2-679-0109 - Timer Input Field installed upgrade
• 2-679-0110 - Door Position Switch Field installed upgrade
• 2-679-0111 - Magnetic Bond Sensor Field installed upgrade
• 2-679-0112 - Anti-Tamper Switch Field installed upgrade

• Top Jamb Kit
• Glass Door Kit
• Universal Header Bracket
• Spacer Bracket
• Armature Mounting Plate with and without Sensor
• Door Coordinator Lock Mounting Kit
• Filler Plates
• Angle Brackets
• See "2950 Accessory Reference List" in related files for a complete list of all mounting kits and part numbers

• Timer Input (Time) - Built-in field adjustments 0-30 seconds re-lock delay
• Door Position Switch (DPS) - Indicates door open and door closed
• Anti-Tamper Switch (ATS) - Indicates access cover removal
• Magnetic Bond Sensor (MBS) - Indicates locked and unlocked, low holding power, tampering, and obstruction between the armature and magnetic core

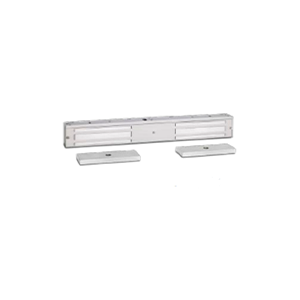

1,200 lb. holding force, Surface mount - double, 12/24VDC

Double magnetic lock with 1200 lbs. holding force

22" (l) x 2-3/4" (h) x 1-9/16" (d)

1 Year
