    5800C

    5800C
    Contact Hager for Price

    Specs

    Body Height
    70mm
    Body Thickness
    32mm
    Body Width
    230mm
    Box Quantity
    1
    Case Quantity
    10
    Features
    • Removable Hold Open Standard
    • Rack and Pinion Operation
    • Adjustable latching and sweep speed valves
    • Conforms to EN1154
    Finishes

    ALM

    Handing
    Field handable
    Material

    Aluminum

    Maximum Door Weight

    60kg

    Maximum Door Width

    950mm

    Notes

    Hager Euroline products are not ANSI certified.

    Product Description

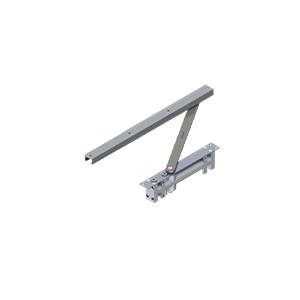

    Concealed Door Closer

    Size

    3

    Track Height
    19mm
    Track Length
    460mm
    Track Width
    29mm
    Warranty

    Five-year

    Instructions

      Name Download File type
    		5800C Installation Instructions i-cl00366-installation.pdf 1376 KB
