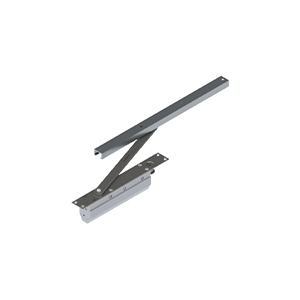

    5800D

    5800D
    Contact Hager for Price

    Specs

    Body Height
    53.5mm
    Body Thickness
    32mm
    Body Width
    210mm
    Box Quantity
    1
    Case Quantity
    10
    Certifications
    • Tested to EM1154 (4:8:2/4:1:1:3)
    • Certified for fire doors
    • CertiFire CF5392
    Features
    • Removable hold open standard
    • Cam and roller operation
    • Adjustable latching and sweep speed valves
    • Adjustable spring force
    Finishes

    ALM

    Handing
    Non-handed
    Material

    Aluminum

    Maximum Door Weight

    45kg - 80kg

    Maximum Door Width

    850mm - 1100mm

    Maximum Opening
    120 degrees
    Notes

    Hager Euroline products are not ANSI certified.

    Product Description

    Concealed Door Closer

    Size

    2 to 4

    Track Height
    19mm
    Track Length
    460mm
    Track Width
    29mm
    Warranty

    Five-year

    Template Files

      Name Download File type
    		38-5800D Template 38-5800d.pdf 194 KB
    		.pdf

    Instructions

      Name Download File type
    		5800D Installation Instructions i-cl00371-rev3.pdf 885 KB
    		.pdf

    Related Files

      Name Download File type
    		500D Certification 5800d.dop.2020.pdf 248 KB
    		.pdf
