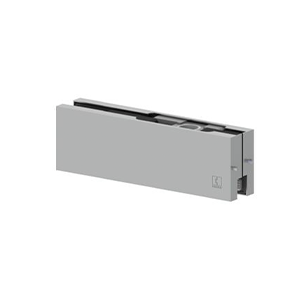

    652

    652
    Contact Hager for Price

    Specs

    Applications
    • Top patch fitting for use with glass doors
    • Post bearing for use with 2-659-0150 on metal or wood frames
    • Post bearing for use with 653 or 654 patch fittings on glass frames
    Box Quantity
    1
    Case Quantity
    10
    Features
    • Suitable for double acting or right/left hand openings
    • Stainless Steel Cover
    • Suitable for common glass thicknesses (10-12 mm)
    • Laterally adjustable pivot (+/- 3 mm)
    • Clamp fixing, concealed with hexagonal socket fasteners
    Finishes

    US32

    Includes
    • One (1) patch fitting
    • One (1) allen key
    Material

    Cast Aluminum, Stainless Steel Cover

    Maximum Door Weight

    80kg

    Maximum Door Width

    1100mm

    Notes

    Hager Euroline products are not ANSI certified.

    Product Description

    Top Patch Fitting

    Warranty

    Three-year

    Template Files

      Name Download File type
    		652 Line Drawing s-ta00843.pdf 128 KB
    		.pdf

    Instructions

      Name Download File type
    		Patch Fittings Installation Instructions - I-TA00956.pdf 704 KB
    		.pdf

    Related Files

      Name Download File type
    		Patch Fitting Install Positions - patch_fitting_install_positions.pdf 116 KB
    		.pdf
