    5800V

    5800V
    Contact Hager for Price

    Specs

    Accessories
    • Hold open arm (2-659-0149)
    • Sliding track arm (2-659-0087)
    • Parallel arm bracket (2-659-0097)
    Box Quantity
    1
    Case Quantity
    10
    Certifications
    • Tested to EN1154 (4:8:3:1:1:3)
    • Certified for fire doors
    Depth
    42mm (Projection)
    Features
    • Adjustable latch and sweep speed
    • Adjustable backcheck
    Finishes

    ALM

    Handing
    Non-handed
    Height
    59mm
    Length

    218mm

    Material

    Aluminum

    Maximum Door Weight

    45kg - 80kg

    Maximum Door Width

    850mm - 1100mm

    Maximum Opening
    180 degrees
    Product Description

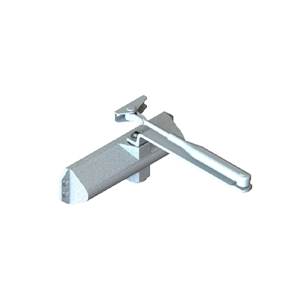

    Surface Door Closer

    Size

    3 (adjustable 2 to 4 via mounting position)

    Valves
    • Adjustable latch and sweep speed - standard
    • Adjustable backcheck - standard
    Warranty

    Five-year

    Instructions

      Name Download File type
    		5800V Installation Instructions i-cl00369-installation.pdf 1378 KB
    		.pdf

    Related Files

      Name Download File type
    		5800V Certification 5800v.dop.2020.pdf 248 KB
    		.pdf
