    3000-D

    3000-D
    Contact Hager for Price

    Specs

    Applications
    • Key on both sides.
    • For use with Euroline mortise locks.
    Box Quantity
    1
    Case Quantity
    60
    Finishes

    US15 - Satin Nickel Plated

    Includes

    One (1) cylinder, three (3) nickel-plated steel keys, and one (1) mounting fastener

    Keys
    Three (3) keys
    Keyway
    Hager H1 or Schlage C
    Length
    • 60mm (Schlage C Keyway Only)
    • 70mm (Schlage C Keyway Only)
    • 75mm (Hager H1 Keyway Only)
    • 80mm (Schlage C Keyway Only)
    Material

    Brass

    Notes
    • Schlage C only available in KD
    • Master Keying only available with Hager H1 keyway
    Product Description

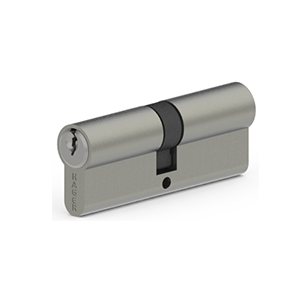

    Double Cylinder

    Warranty

    Three-year

    Related Files

      Name Download File type
    		3000D Hager H1 Keyway Template s-ck00056.pdf 308 KB
    		.pdf
    		3000D Schlage C Keyway Template s-ck00028-rev8.1.pdf 682 KB
    		.pdf
