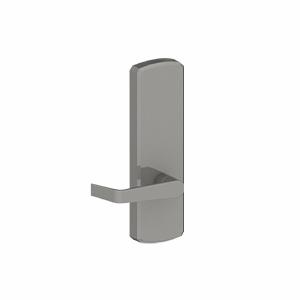

45MB

Contact Hager for Price

Specs

Certifications

Escutcheons

2-15/16" x 10" (75 mm x 254mm)

Finishes

US3, US4, US10, US10B, US26, US26D, BLK

Functions

14 - Always operable (passage)

Lever Options

Archer, August, William, Withnell

Notes

Mortise trim (45MB, 45MC, 45MD, 45MN) does not match center line of other 4500 Series trim (45BE, 45CE, 45DT, 45NL)

Projection

3-1/4" (82mm) for Archer; 2-3/4" (70mm) for August; 3-13/32" (87mm) for William; 2-9/16" (65mm) for Withnell

Warranty

Lifetime

	Name	Download	File type
	4500 Mortise Exit Device T-ED01545-Rev05.pdf	76 KB	.pdf
	4500 Mortise Exit Device Door Prep Drawings - S-ED01546-Rev05.pdf	131 KB	.pdf

	Name	Download	File type

Name	Download	File type
4500 Mortise Exit Trim Choices - 4500_Mort_Exit_Trim_Options.pdf	121 KB	.pdf
4500 Mortise Exit Trim Lever Options - 4500_Mort_Exit_Trim_Lever_Options.pdf	299 KB	.pdf
How To Order EXITS 4500 - ED_4500_HTO_v15.138.pdf	748 KB	.pdf
