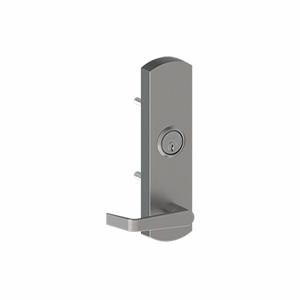

45NL

Contact Hager for Price

Specs

Certifications

ANSI/BHMA A156.3-2014 Grade 1
Complies with ANSI A117.1 for accessible buildings and facilities

Cylinders/Cores

Rim cylinder 3901 with long tailpiece, sold separately

Escutcheons

2-3/4" x 10-3/4" (70mm x 273mm)

Finishes

US3, US4, US10, US10B, US26, US26D, BLK

Functions

03 - Key retracts latchbolt

Lever Options

Archer, August, Charles, Johnston, Joshua, Louis, Warren, William, Withnell (rigid lever)

Projection

2-13/16" (71mm) for Archer; 2-7/8" (73mm) for August; 3-3/8" (86mm) for Charles; 3-1/16" (78mm) for Johnston; 3-17/32" (90mm) for Joshua; 3-3/16" (81mm) for Louis; 3-13/32" (87mm) for Warren; 3-1/2" (89mm) for William; 2-11/16" (68mm) for Withnell

Warranty

Lifetime

Template Files

	Name	Download	File type
	4500 Trim Template Standard NL Trim Model Only LHR_RHR - T-ED00344-Rev01.pdf	173 KB	.pdf

Instructions

	Name	Download	File type
	4506 Series Trim Installation Instructions - I-ED00788.pdf	362 KB	.pdf

Related Files

	Name	Download	File type
	Exit Device Lever Options - ED_Lever_Options_2015_Rev11.03.2020.pdf	670 KB	.pdf
	How To Order EXITS 4500 - ED_4500_HTO_v15.138.pdf	748 KB	.pdf
