Aluminum Storefront Only

• ANSI/BHMA A156.3_2014 Grade 1
• UL305 Listed for Panic Hardware

Stainless steel, zinc

• Hex dogging feature standard on panic-rated labeled doors
• Cylinder dogging available on panic rated devices - specify "CD". 3902 Mortise cylinder with standard cam sold separately. Cylinder Length of 1-1/8" (29mm) - 1-3/8" (35mm) is required.

1-3/4" (44mm) - Standard

• 36" (914mm) field sizeable to 30" (762mm) panic-rated door
• 48" (1219mm) field sizeable to 36" (914mm) panic- rated door

Zinc (Flush end cap standard)

• Wood and machine screws
• Thru-bolts

• US26D and US32D
• US3, US4, US10B US26, BLK - available at extended lead times
• Trim is not available in US32D
• Anti-Microbial available with US26D and US32D

• 01 - Exit Only (device)
• 02 - Dummy, pull when device is dogged down (46DT)
• 03 - Night Latch, key retracts latch bolt (46NL)
• 08 - Cylindrical Escutcheon, key locks or unlocks lever (46CE)
• 14 - Blank Escutcheon, always operable (passage) (46BE)

• Top - 1/2" (13mm) throw, stainless steel
• Bottom - 1/2" (13mm) throw, held retracted during door swing, stainless steel

• 7' (2134mm) - Standard
• 8' (2438mm) - Optional

• Center line prep is 40" (1016mm) - If door prep elevation is lower, a longer top rod will need to be ordered
• Recommended to be used on appropriately reinforced doors
• Available in Less Bottom Rod and Electrified versions also

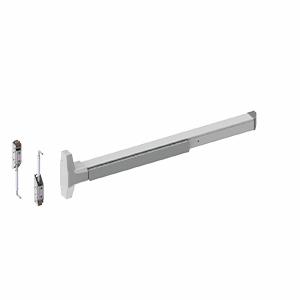

4600 Series Grade 1 Concealed Vertical Rod Exit Device

• 3" (76mm) in undogged position
• 2-5/8" (67mm) in dogged position

• Rods for 7' (2134mm) door - Standard
• Rods for 8' (2438mm) and 10' (3048mm) doors - Optional
• Door height of 7' (2134mm) requires 33-1/2" (851mm) top rod length
• Door height of 8' (2438mm) requires 45-1/2" (1156mm) top rod length

• 2-1/8" (54mm) minimum stile width required
• All stile widths are measured from door edge

• Stainless steel
• Mortised into aluminum frame

Archer, August, William or Withnell lever with escutcheon trim

Lifetime
