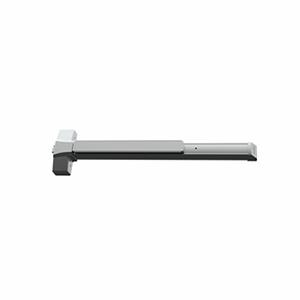

Heavy Duty Commercial

• ANSI/BHMA A156.3-2014 Grade 1
• UL305 Listed for Panic Hardware
• UL/cUL Listed for up to 3 hours for "A" labeled doors
• UL10C Positive Pressure Rated
• UL10B Neutral Pressure Rated
• Warnock Hersey listed for up to 3 hours with fire rated removable mullion
• Complies with ANSI 117.1 for accessible buildings and facilities
• Miami-Dade County, Florida NOA #22-0816.08, Exp. Aug. 16, 2027

Stainless steel, zinc

1-3/4" (44mm) - Standard up to 3", except with night latch which is 2-1/2"

• 36" (914mm) field sizeable to 30" (762mm) panic-rated door and 28" (711mm) fire-rated door for devices with any monitoring switches
• 48" (1219mm) field sizeable to 36" (914mm) panic- or fire-rated door for devices with any monitoring switches
• 36” (914mm) field sizeable to 34” (864mm) door minimum for devices with motorized electric latch retraction
• 36” (914mm) door minimum for devices with alarm kit, delayed egress or onboard delayed egress
• 48” (1219mm) field sizeable to 42” (1067mm) door minimum for devices with alarm kit
• 48” (1219mm) field sizeable to 40” (1016mm) door minimum for devices with motorized electric latch retraction
• 48” (1219mm) door minimum for devices with delayed egress or onboard delayed egress

• RX - Request to Exit
• RX2 - Dual Request to Exit
• ALK - Alarm Kit
• AI - Authorized Ingress
• LM - Latchbolt Monitor
• RXLM - Request to Exit with Latchbolt Monitor
• MLR - Motor Driven Electric Latch Retraction
• MLRX- Motor Driven Electric Latch Retraction w

• RX, LM or AI; 125 VAC (3 AMP current); 30 VDC (2 AMP current)
• MLR; 1 AMP in rush @ 24 VDC +/- 2 V
• DE; 430mA @ 24V Single; 680mA @ 24V Tandem
• OBDE; 540mA @ 24V Single; 790mA @ 24V Tandem

• Standard end cap (zinc)
• OPTIONAL Flush end cap (zinc)

• Wood and machine screws
• Thru-bolts

• US3, US4, US10B, US26, US26D, US32D, BLK
• Trim is not available in US32D

3/4" (19 mm) throw, pullman type with automatic dead-latching, stainless steel

Recommended to be used on appropriately reinforced doors

• Archer, August, Charles, Johnston, Joshua, Louis, Warren, William or Withnell lever with escutcheon
• Pull plate trim
• Rim cylinder x optional pull

• One year on electrified components
• Lifetime on hardware components

• Status switches (i.e. RX, LM, etc.) require 2 wires per switch to monitor a normally open (NO) or normally closed (NC) position
• All devices provide 3 wires per switch so both NO and NC positions can be monitored
• Monitoring both positions will require 3 wires per switch

• Hex key dogging standard on panic rated devices
• Cylinder dogging available on panic rated devices, specify "CD" ( 3902 1-1/8" (29mm) mortise cylinder sold separately)

• 3" (76 mm) in undogged position
• 2-5/8" (67 mm) in electrically dogged position

• 5-3/8" (137 mm) - Minimum stile width required for single doors and standard 5/8" (16 mm) stop
• 4-7/8'' (124 mm) - Minimum stile width required for double door x surface vertical rod with double door strike
• 5-3/4" (146 mm) - Minimum stile width required for double door and 2" (51 mm) mullion
• 5" (127mm) - Minimum stile width required for double doors with a middle rail and a 2" mullion
• All stile widths are measured from the door edge

• Stainless steel with plated rollers - Included standard with panic devices
• Solid stainless steel - Included standard with fire-rated devices
• Surface applied to frame with slotted holes for easy adjustment
• Double door strike for use with surface vertical rod and rim device available
