Heavy Duty Commercial

• ANSI/BHMA A156.3-2014 Grade 1
• UL305 Listed for Panic Hardware
• UL/cUL Listed for up to 3 hours for "A" labeled doors
• UL10C Positive Pressure Rated
• UL10B Neutral Pressure Rated
• Complies with ANSI 117.1 for accessible buildings and facilities
• Miami-Dade County, Florida NOA #22-0816.08, Exp. Aug. 16, 2027

Stainless steel, zinc

1-3/4" (44 mm) - Standard up to 3", except with night latch which is 2-1/2"

• 36" (914mm) field sizeable to 30" (762mm) panic-rated door and 28" (711mm) fire-rated door for devices with any monitoring switches
• 48" (1219mm) field sizeable to 36" (914mm) panic- or fire-rated door for devices with any monitoring switches
• 36” (914mm) field sizeable to 34” (864mm) door minimum for devices with motorized electric latch retraction
• 36” (914mm) door minimum for devices with alarm kit, delayed egress or onboard delayed egress
• 48” (1219mm) field sizeable to 42” (1067mm) door minimum for devices with alarm kit
• 48” (1219mm) field sizeable to 40” (1016mm) door minimum for devices with motorized electric latch retraction
• 48” (1219mm) door minimum for devices with delayed egress or onboard delayed egress

• RX - Request to Exit
• RX2 - Dual Request to Exit
• ALK - Alarm Kit
• AI - Authorized Ingress
• LM - Latchbolt Monitor
• RXLM - Request to Exit with Latchbolt Monitor
• MLR - Motor Driven Electric Latch Retraction
• MLRX- Motor Driven Electric Latch Retraction with Request to Exit
• MLRXLM - Motor Driven Electric Latch Retraction with Request to Exit and Latchbolt Monitoring
• MLRLM - Motor Driven Electric Latch Retraction with Latchbolt Monitoring
• DE - Delayed Egress (Rod covers by others recommended for SVR/LBR Applications)
• OBDE - Onboard Delayed Egress (Rod covers by others recommended for SVR/LBR Applications)

• RX, LM or AI; 125 VAC (3 AMP current); 30 VDC (2 AMP current)
• MLR; 1 AMP in rush @ 24 VDC +/- 2 V
• DE; 430mA @ 24V Single; 680mA @ 24V Tandem
• OBDE; 540mA @ 24V Single; 790mA @ 24V Tandem

Zinc

• Wood and machine screws
• Thru-bolts

• Top - 1/2" (13 mm) throw, Pullman type with automatic dead-latching, stainless steel
• Bottom - 1/2" (13 mm) throw, Pullman type, held retracted during door swing, stainless steel

• 7' (2134 mm) - Standard
• 8' (2438 mm) - Optional
• 10' (3048 mm) - Optional (panic device only)

• Center line prep is 40". If door prep elevation is lower, a longer rod will need to be ordered
• Recommended to be used on appropriately reinforced doors
• The 4500 SVR tested configuration for Miami-Dade County, Florida NOA #17-1226.23, used a panic threshold with no bottom strike. The suggested Hager part is the 520S but any approved panic threshold can be used. Please see the NOA for further details.

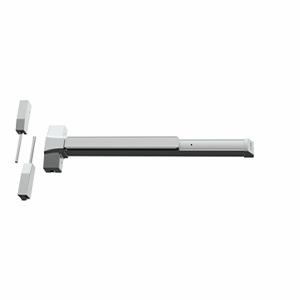

Grade 1 Surface Vertical Rod Exit Device

• Stainless steel with plated rollers - Included standard with panic devices
• Solid stainless steel - Included standard with fire rated devices
• Surface applied to frame with slotted holes for easy adjustment
• 10' (3048 mm) fire rated device requires strike and hook kit, 4912, for top strike
• Double door strike for use with surface vertical rod and rim device available

• Archer, August, Charles, Johnston, Joshua, Louis, Warren, William or Withnell lever with escutcheon trim
• Pull plate trim (excluding 45PT)
• Rim cylinder x optional pull

• One year on electrified components
• Lifetime on hardware components

• Status switches (i.e. RX, LM, etc.) require 2 wires per switch to monitor a normally open (NO) or normally closed (NC) position
• All devices provide 3 wires per switch so both NO and NC positions can be monitored
• Monitoring both positions will require 3 wires per switch

• Hex key dogging standard on panic-rated devices
• Cylinder dogging is available on panic-rated devices, specify "CD" (3902 1-1/8" (29mm) mortise cylinder sold separately)

• 3" (76 mm) in undogged position,
• 2-5/8" (67 mm) in electrically dogged position

• Rods for 7' (2134 mm) door - Standard,
• Rods for 8' (2438 mm) door - Optional,
• Door height of 7' (2134 mm) requires 33-1/4" (845 mm) top rod length,
• Door height of 8' (2438 mm) requires 45-1/4" (1149 mm) top rod length,
• Extension rods kits available, 2' (610mm) or 3' (914mm)

• 5-3/8" (137 mm) - Minimum stile width required for single door and 5/8" ( 16 mm) stop,
• 4-7/8" (124 mm) - Minimum stile width required for double doors,
• 4-7/8" (124 mm) - Minimum stile width required for double doors x rim device with double door strike,
• All stile widths are measured from door edge
