• Heavy Duty Commercial
• Industrial
• Institutional

2-3/4" (70mm)

• ADA Compliant ANSI A117.1 Accessibility Code
• UL/cUL Listed for all functions up to 3 hours "A" label single doors
• UL10C Positive Pressure Rated
• BHMA Certified ANSI A156.13, Series 1000, Grade 1
• ANSI A250.13 Severe Windstorm Compliant (Must specify on PO)

• Brass - keyed different - Schlage C keyway - standard
• Drilled 6-Pin, Keyed 5-Pin - standard
• Other keying options, including keyed 6-pin, available from factory
• Zero bit cylinders will be 6 pin keyed - standard
• SFIC mortise housings available
• SFIC uncombinated or combinated, brass 6- or 7-pin cores sold separately - standard
• LFIC mortise housings available
• LFIC zero bitted or combinated, brass 6-pin sold separately – standard. Schlage C keyway only.
• Schlage "L" cam is used standard on Hager mortise locks

1" (25 mm) throw - stainless steel

• 1-3/4" - 2-1/2" (45 mm - 64 mm)
• Please specify door thickness if greater than 1-3/4" (45 mm) or the door has an offset prep

• Cast Zinc -Standard
• Cast Stainless Steel - Optional for Withnell (WTS) and William (WLS) only

• US3, US4, US10B, US26, US26D, US32D*
• *US32D look on a cast zinc lever
• Withnell or William are the only lever options available in both zinc and stainless steel. For stainless steel, reference Withnell (WTS) or William (WLS) at the time of order.
• US3, US4 and US26 subject to extended lead time

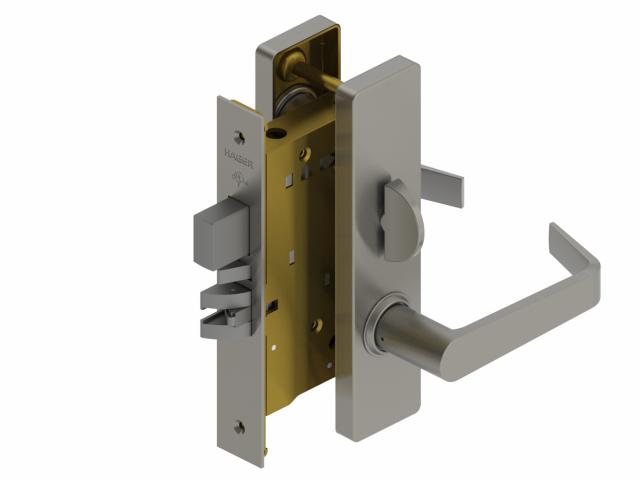

Storeroom w/ Deadbolt

3/4" (19 mm) throw with anti-friction tongue, all stainless steel

Archer, August, Charles, Johnston, Joshua, Louis, Warren, William and Withnell

4-5/16" x 6" x 1" (110 mm x 152 mm x 25 mm)

• No exposed mounting screws
• Concealed thru-bolts
• Body is easily field reversible (shipped LHR by default)
• Self adjusting case for beveled doors

• Tactile Warning
• Lead Lining
• Split Finish
• Factory Handing Available (if specified)
• Request to Exit (RX)

• 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
• Optional strikes available

Lifetime
