Keeping Your Door Closers on Track
Keep your door closers on track with Hager’s slide track arm for our 5100, 5200 and 5300, grade 1 closer series. The heavy duty track arms combined with the proven reliability of the grade 1 closers make this a winning combination. The extruded aluminum track incorporates the slide arm into the track at a selected point. Choices of track functions, including the double egress arm meet virtually all installation requirements.

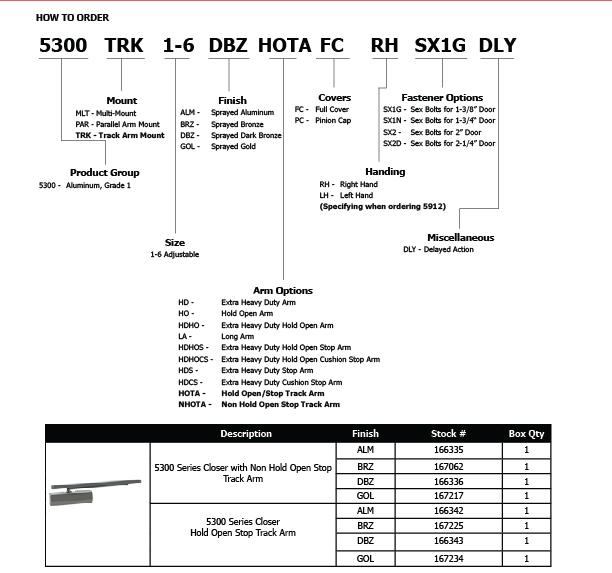

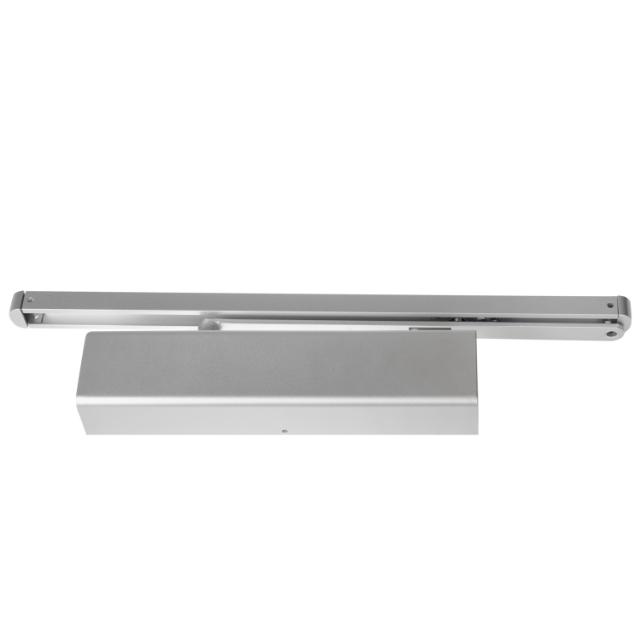

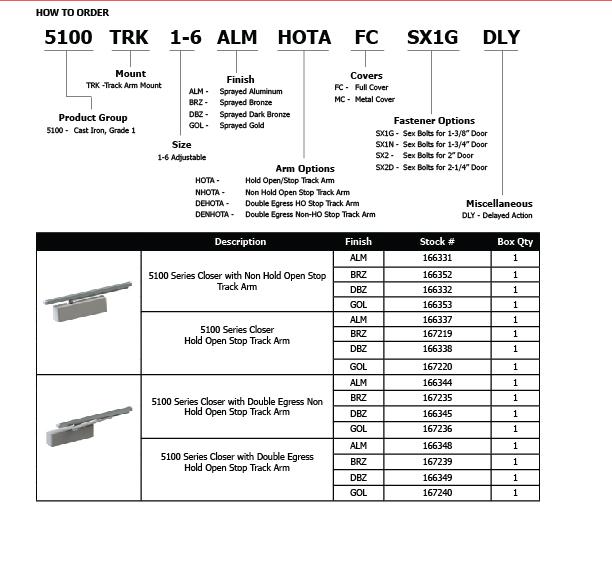

Slide Track Arms for 5100, 5200 and 5300 Series Door Closers
Handing: Non handed
Track: Extruded Aluminum
Arm: Steel
Functions: Non hold open stop Hold open stop
Standard Opening Range: Push side 110° Pull side 110°
Pocket Applications: 90° pocket door
Notes: Hold open arms are not code compliant on fire-rated doors - Hold open range 85° to 120

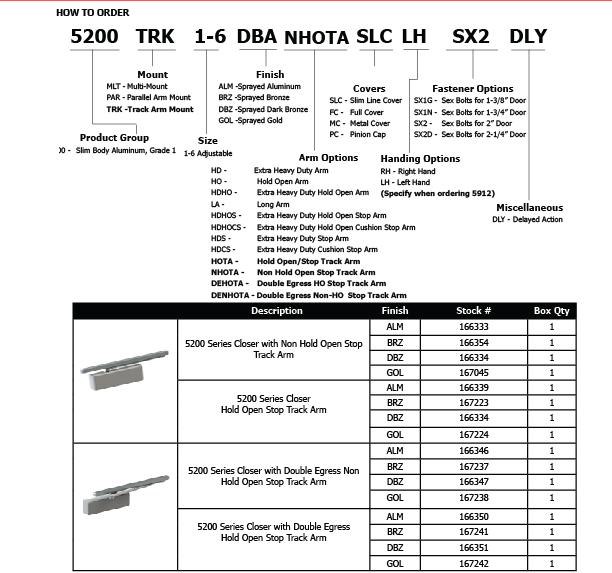

Double Egress Slide Track Arms for 5100 and 5200 Series Door Closers
Handing: Non handed
Track: Extruded Aluminum
Arm: Steel
Functions: Non hold open stop | Hold open stop
Standard Opening Range: Push side 110° | Pull side 110°
Pocket Applications: 90° pocket door for use on fire-rated doors
Reveal: 3” (76mm) to 4” (102mm)
Notes: Hold open arms are not code compliant on fire-rated doors - Maximum door opening 160° - Maximum door opening with stop function 120°
Product is available in standard finishes; aluminum, bronze, dark bronze and gold. For special finishes, please contact customer service for information.
