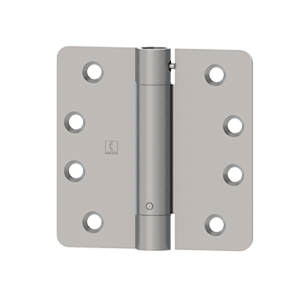

    1734

    1734

    Must be ordered in increments of two.

    UL C/US Listed: True
    Contact Hager for Price

    Specs

    Box Quantity
    2 each
    Case Quantity
    80 each
    Certifications
    • BHMA Certified, ANSI 4156.17, Grade 1
    • ANSI K51071F
    Fastener Size - Machine
    12-24 X 12
    Fastener Size - Wood

    1-1/4" X 12

    Finishes

    US32D

    Gauge
    0.097
    Knuckles

    3

    Material

    Stainless steel

    Maximum Door Weight

    45 - 75 lbs

    Notes

    Template, Timely Frame All MS 1/2 WS

    Packaging
    2 pack with fasteners
    Product Description

    Round Corner 1/4" Radius, Spring Hinge

    Size

    4" X 4"

    Template Files

      Name Download File type
    		Full Mortise Res 4in x 4in SGL Acting Spring Template - T408-Rev02 134 KB
    		.pdf

    Instructions

      Name Download File type
    		Spring Hinge Installation Instructions 1150_1250_1750 - Rev06-28-06B.pdf 82 KB
    		.pdf

    Size Details

      Name Download File type
    		Size Options - Hinge_Spring_Opt_2.pdf 112 KB
    		.pdf
