• Lead lined model for hospital x-ray room doors with double row of fasteners to straddle lead (Specify "LL")
• Frame and door leaf alignment ribs for proper hinge and door location

15/32" (12 mm) hinge side plus standard lockside clearance

2-3/8" thick or greater

• Power Transfer Preparation (EPT 2) or (EPT 10)
• Electric Through-Wire (ETW)

• Standard: Dril-Kwik® ¼ - 20 X 1” Screws
• Optional: ¼ - 14 x 1 1/2" Wood Screws
• Additional Options Available upon request

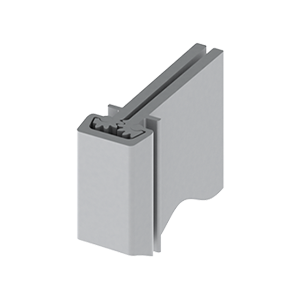

• Strong enough to swing doors heavier than 600 lbs., wider than 4 feet, and taller than 10 feet. Extra heavy duty for heavy, high frequency doors or extremely heavy, low frequency doors; for doors 1-3/4” (45 mm) to 2-3/8” (60 mm) thick.
• Lead lined model for hospital x-ray room doors with double row of fasteners to straddle lead (Specify “LL”)
• Frame and door leaf alignment ribs for proper hinges and door location

CLR, DBZ

• Standard sizes include:
• 83" (2108 mm)
• 95" (2413 mm)
• 119" (3023 mm)
• Custom lengths available

Aluminum 6063-T6

EPD: Roton Continuous Hinges Environmental Product Declaration

• Concealed Leaf
• Extra Heavy Duty

All Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty.
