• Lead lined model for hospital x-ray room doors with double row of fasteners to straddle lead (specify "LL")
• Door edge protection lip
• Swing-clear action and ADA compliant for classroom or patient room doors
• Not recommended for doors with a beveled edge on the hinge side

• 5/16" (8 mm) hinge side
• Plus standard lockside clearance
• Refer to Door and Frame Dimensioning in the General Information section for further details

• Standard: Dril-Kwik® – #12-24 X 11/16" Flat Head Screws
• Additional Options Available upon request

• Heavy duty for high frequency doors - for wood or metal doors 1-3/4" (44 mm) thick
• Lead lined model for hospital x-ray room doors with double row of fasteners to straddle lead (specify "LL")
• Door edge protection lip
• Swing-clear action and ADA compliant for classroom or patient room doors
• Not recommended for doors with a beveled edge on the hinge side

CLR, DBZ, BLK

79", 83", 85", 95", 119"

Standard and Custom

Aluminum 6063-T6

• EPD: Roton Continuous Hinges Environmental Product Declaration
• When opened 90° door projects 13/16" past a standard 5/8" stop of jamb.

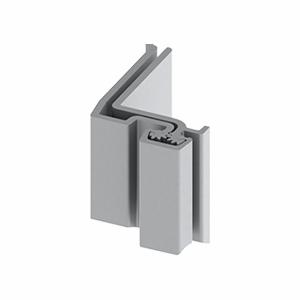

• Concealed Leaf
• Heavy Duty
• 1-3/4" Door Swing Clear Action

All Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty.
