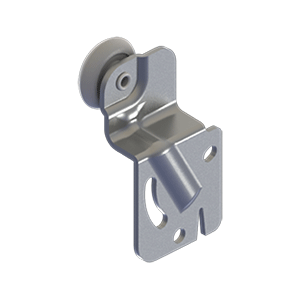

    9201 - Single Wheel Hanger

    9201
    Contact Hager for Price

    Specs

    Case Quantity
    100
    Gauge
    0.075" (2 mm)
    Material

    Zinc plated steel with molded Celcon wheels

    Maximum Door Weight

    60 lbs (27 kg)

    Product Description

    Hanger - Large 11/16" (18 mm) offset B

    Product Name

    Single Wheel Hanger

    Use

    For use with 9810, 9820, and 9840 track

    Website Note
    • Side mounted with slot adjust offset,
    • Hanger is stamped with "A" or "B" for easy identification,
    • For use on doors weighing up to 60 lbs (27 kg),
    • For use with 9810, 9820, and 9840 track,
    • B offset of 11/16" (18 mm)

    Template Files

      Name Download File type
    		9201 Single Wheel Hanger B Offset Template s-sd00071-template.pdf 195 KB
    		.pdf

    Related Files

      Name Download File type
    		SD-2015 Side Mount Selection Chart - 2015_Side_Mt_Sel_Chart_pdf 71 KB
    		.pdf
