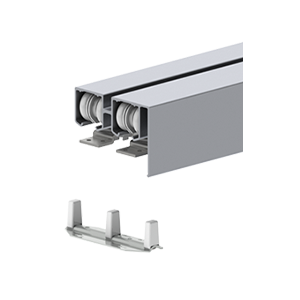

9886 for 96in. Wide Openings

9886

Contact Hager for Price

Specs

Applications: 9886 Series for doors weighing 250 lbs (113kb) per door
Available Sizes: 9886-96 = 96" (2438mm)
Case Quantity: 1
Conforms To: ANSI A156.14
Door Thickness: 1-3/8" - 1-3/4" (35 mm - 44 mm) thick doors
Includes: Contents: 9803 track, 8 ea. 9827 hangers w/ top mount plate, 2 ea. 9815 center stops, 2 ea. 9909 adjustable door guides.
Maximum Door Weight: 250 lbs
Notes: Compares to Grant 1200 Series and Lawrence F571, ED520
Packaged Sets: 9886-96: 8' (2438 mm) opening for two doors -
Product Description: By-Pass Packaged Set
Product Name: 9886 Series
Type: D8731, D8751

	Name	Download	File type
	9885_9886 By-Pass Installation Instructions - I-SD00324-Rev02.pdf	495 KB	.pdf
