    779S

    779S
    Contact Hager for Price

    Specs

    Certifications
    • Smoke and Draft Control
    • EPD - Automatic Door Bottom Environmental Product Declaration
    • Category H & J
    Fasteners

    #6 x 5/8" Pan head sheet metal screws furnished

    Finishes

    MIL, DBA, GLD

    Fire Rating
    UL Listed
    Insert Codes
    V, N
    Inserts
    Vinyl, Neoprene
    Notes
    • Lengths up to 48" are supplied 1/2" over the stated size to allow for fitting
    • Lengths over 48" are supplied 1" over
    • Cut to exact length may be specified
    • Constructed of strong 6063-T5
    • MIL finish weatherstripping is supplied with zinc plated screws
    • Color anodized weatherstripping is supplied with screws plated to match
    Product Description

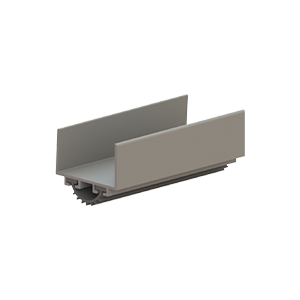

    Door Bottom - Shoe

    Size

    Width: 1 3/4" (45 mm) Strip height: 1/2" (13 mm)

    Specifications

    per linear foot

    Warranty

    Five-Year Warranty

    Instructions

      Name Download File type
    		Screw-on Weatherstripping Installation Instructions - I-TW00268-Rev03.pdf 198 KB
    		.pdf

    Related Files

      Name Download File type
    		Hager EPD - Door Bottoms Weatherstripping 103.1 846 KB
    		.pdf

    CAD Files

      Name Download File type
    		779S CAD - PDF 779S_CAD.PDF 71 KB
    		.pdf
    		779S CAD - DXF 779S_CAD.DXF 675 KB
    		dxf
    		779S CAD - DWG 779S_CAD.DWG 308 KB
    		dwg
