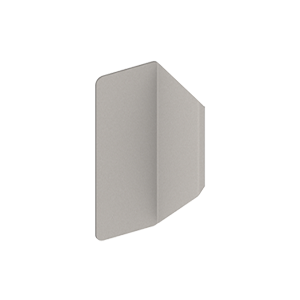

Meets ANSI A156.6 for J401 pull and ANSI A156.6 for J407 pull plate

1-5/8" (41mm)

1-3/4" - 2" (45mm - 51mm)

US32D

Dummy

-Dummy - four 1/4 - 20 x 3/4 FPHMS and four finish washers - Mortise lock - four 1/4 - 20 x 3/4 FPHMS and four finish washers - Exit device - supplied with exit device

11 GA stainless steel

• For use with most mortise locks on out-swinging doors
• For use with many exit devices. Thru bolts directly to device
• Must order cylinders separately
• When mounting trim to a Hager exit device, retaining cup (2-649-0137) must be purchased to ensure proper installation and a 7/16” (11 mm) tall cylinder collar must be purchased when using a 1-1/4” to 1-3/8” (32mm - 35mm) long rim cylinder (See instructions for more detail)

Cylinder cutout available [1-1/4” (32mm) diameter standard for exit device use and 1-1/2" (38mm) diameter standard for mortise lock use]

1-7/8" (478mm)

6-11/32" x 11" (161mm x 280mm)
