14

Contact Hager for Price

Specs

Applications

Box Quantity

Case Quantity

Certifications

Clearance

1-3/4"

Door Thickness

1-3/4" (45 mm)

Fasteners

Two 1/4" diameter threaded studs, spanner collar, and spanner wrench

Finishes

US3, US4, US10, DBZ, US19, US26, US26D, US28, US32, US32D

Handicap

2-1/2" (64 mm) Clearance available on special order. Add prefix "H" to number (H12L, for example).

Material

Aluminum, Brass, Bronze, Stainless Steel

Mounting Style

BTB Mounting Type 7 concealed spanner (required 3/8" minimum holes in doors)

Notes

Consists of two pulls back to back

Optional Features

Other sizes and finishes may be available via special order.

Product Description

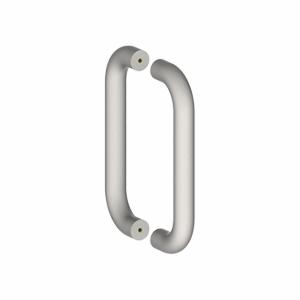

Push/Pull Set - Round

Projection

2-3/4" (70 mm)

Pull Clearance

1-3/4" (45 mm)

Pull Diameter

1" (25 mm)

	Name	Download	File type
	Back to Back Mounting Installation Instructions - 737-0091-type7-rev1.pdf	582 KB	.pdf

	Name	Download	File type
	Hager EPD - Pulls and Cylinder Pulls 101.1	926 KB	.pdf
