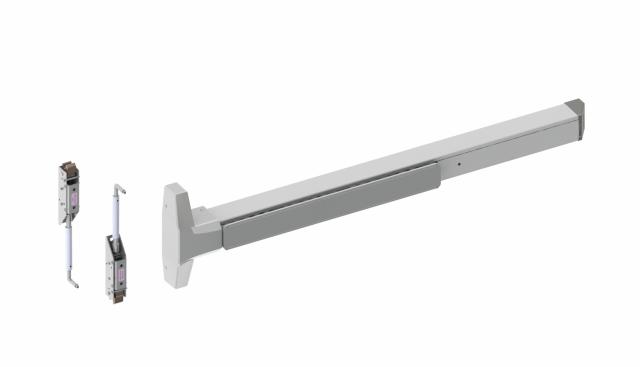

Heavy Duty Commercial

• ANSI/BHMA A156.3-2014 Grade 1
• UL305 Listed for Panic Hardware
• UL/cUL Listed for up to 3 hours for "A" labeled doors
• UL10C Positive Pressure Rated
• UL10B Neutral Pressure Rated
• Complies with ANSI 117.1 for accessible buildings and facilities

Stainless steel, zinc

1-3/4" (44 mm) - Standard

• RX - Request to Exit
• RX2 - Dual Request to Exit
• MLR - Motor Driven Electric Latch Retraction
• MLRX- Motor Driven Electric Latch Retraction with Request to Exit
• DE - Delayed Egress

• RX; 3A @125VAC; 2A @ 30 VDC
• MLR; 1A inrush @24VDC
• DE; 430mA @ 24VDC signal; 680mA @24VDC Tandem

Standard Flush End Cap (Zinc)

• Wood and machine screws
• Thru-bolts

• Top - 1/2" (13 mm) throw, stainless steel
• Bottom - 1/2" (13 mm) throw, held retracted during door swing, stainless steel

• 7' (2134mm) - Standard
• 8' (2438mm) - Optional

• Center line prep is 40". If door prep elevation is lower, a longer rod will need to be ordered
• Recommended to be used on appropriately reinforced doors

• Escutcheon trim
• Rim cylinder x optional pull

• One year on electrified components
• Lifetime on hardware components

• Status switches (i.e. RX, LM, etc.) require 2 wires per switch to monitor a normally open (NO) or normally closed (NC) position
• All devices provide 3 wires per switch so both NO and NC positions can be monitored
• Monitoring both positions will require 3 wires per switch

• 3" (76mm) in undogged position
• 2-5/8" (67mm) in electrically dogged position

• Rods for 7' (2134mm) door - Standard
• Rods for 8' (2438mm) and 10' (3048mm) doors - Optional
• Door height of 7' (2134mm) requires 33-1/2" (851mm) top rod length
• Door height of 8' (2438mm) requires 45-1/2" (1156mm) top rod length

• 2-1/8" (114mm)
• All stile widths are measure from the door edge
